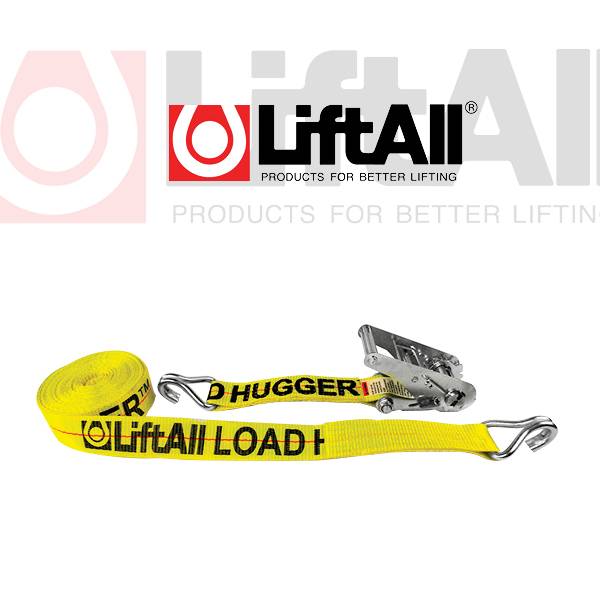

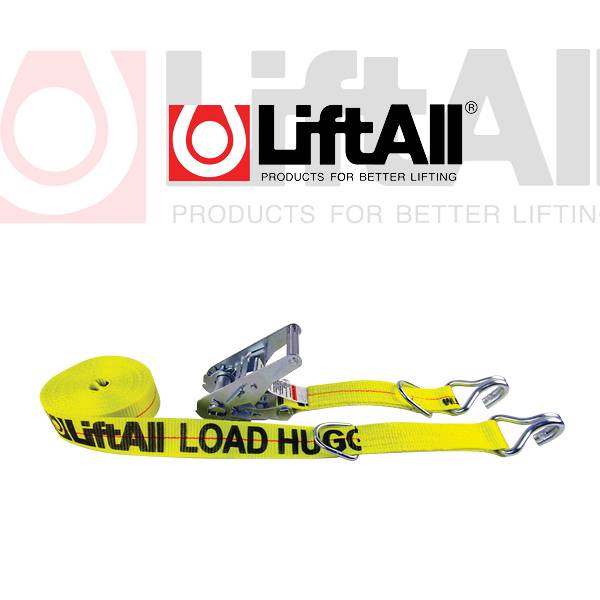

Series 10,000 – 2″ Load Hugger™ Tiedown

Lift-All^® Load Hugger cargo control and load securement products offer the van and flatbed operator a wide variety of options to meet U.S. DOT, FMCSA (Federal Motor Carrier Safety Administration), and CVSA (Commercial Vehicle Safety Alliance) requirements.

Series 10,000 - 2" Wide Polyester Webbing

• Ultimate Break Strength (of new assembly): 10,000 lbs.
• Working Load Limit: 3,300 lbs.
• Standard lengths are 27' or 30'.

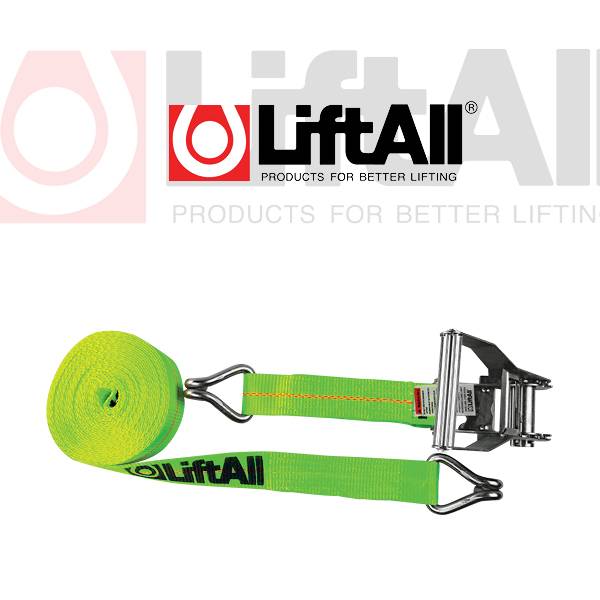

• Available in standard yellow and Hi-Vis Tuff-Edge.
• Custom lengths available. Order Now!
• Lift-All uses a Fastener Quality Act (FQA) compliant bolt on the ratchet buckle.
• The web attachment point includes a steel wrap to prevent cutting of the web from the corners.
• The solid mandrel used on Lift-All ratchets won’t collapse under load.
• Lift-All uses an environmentally friendly, clear zinc plating on flat hooks to prevent corrosion.

Product Info

Products shown in this table have an Ultimate Breaking Strength of 10,000 lbs. when new and a Working Load Limit (WLL) of 3,300 lbs.

		Series 10,000
Web Width		2″
Ultimate Break Strength*		10,000 lbs.
Working Load Limit		3,300 lbs.

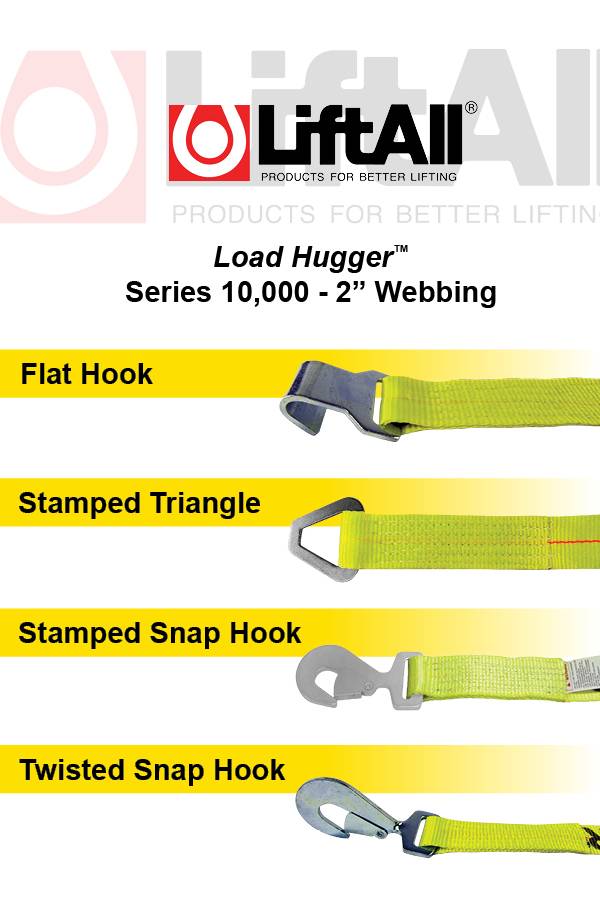

End Fitting	Length** (ft.)	Stand. Part No.	Tuff-Edge Part No.

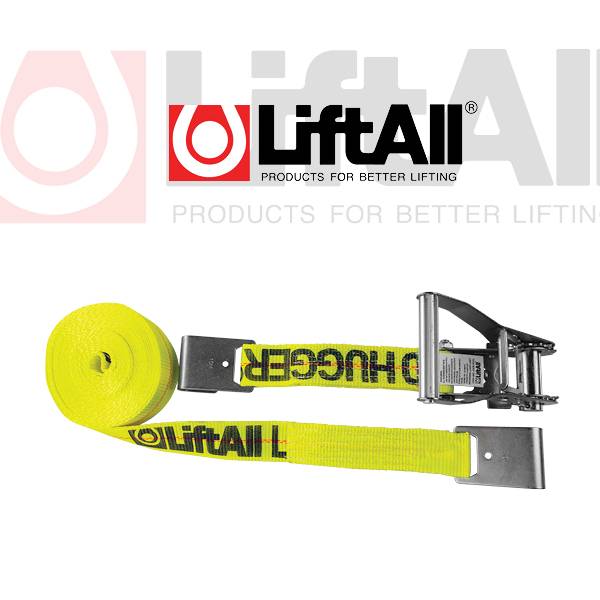

Flat Hook	27	61001	TE61001
	30	61002	TE61002
Stamped Triangle	27	61003	TE61003
	30	61004	TE61004
Stamped Snap Hook	27	61005	TE61005
	30	61006	TE61006
Twisted Snap Hook	27	61007	TE61007
	30	61008	TE61008

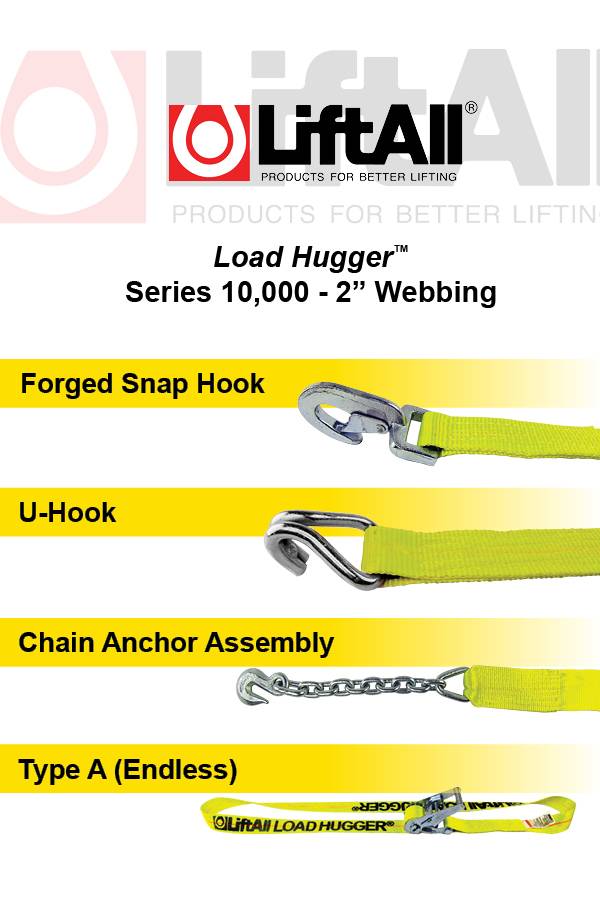

Forged Snap Hook	27	61009	TE61009
	30	61010	TE61010
U-Hook	27	26422	TE26422
	30	26423	TE26423
Chain Anchor Assembly	27	61013	TE61013
	30	61014	TE61014

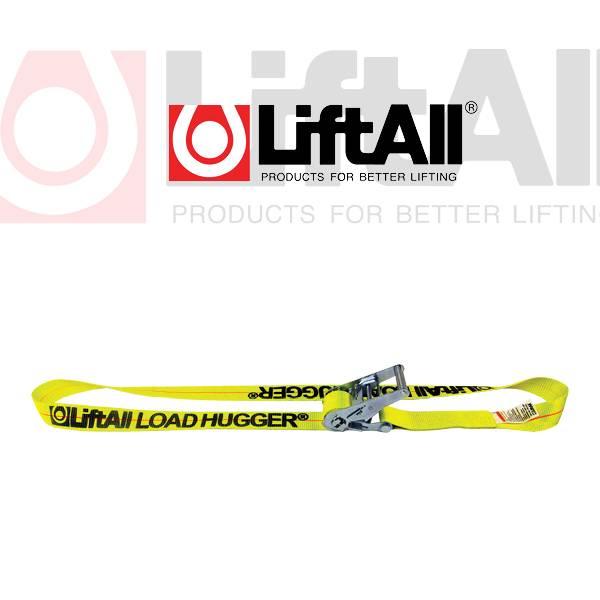

Type A- Endless	27	61011	TE61011
	30	61012	TE61012

Note: Since end terminations vary proportionally with size, check with Lift-All if precise dimensions are required.
** Non-standard lengths available.

Watch the Video

Watch Next: Inspection Criteria for Webbing  |  Inspection Criteria for Chain

Safety Bulletin

Download the Product PDF

Always protect Tiedowns from being cut by corners and edges. See the full line of Sling Protection products to choose the best option for your application.
