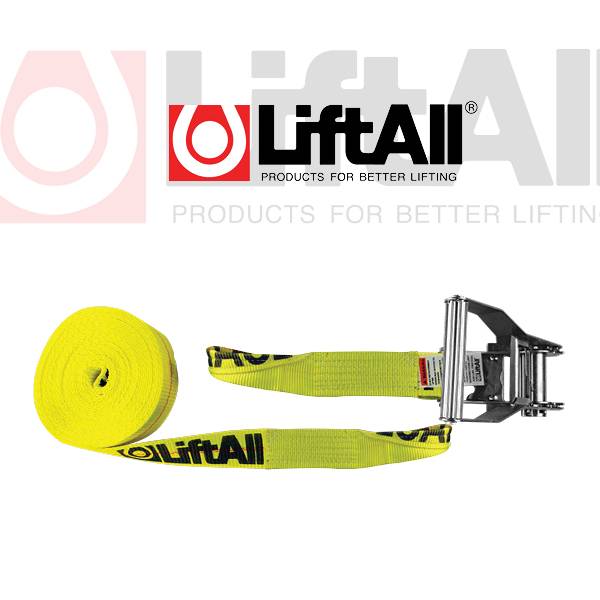

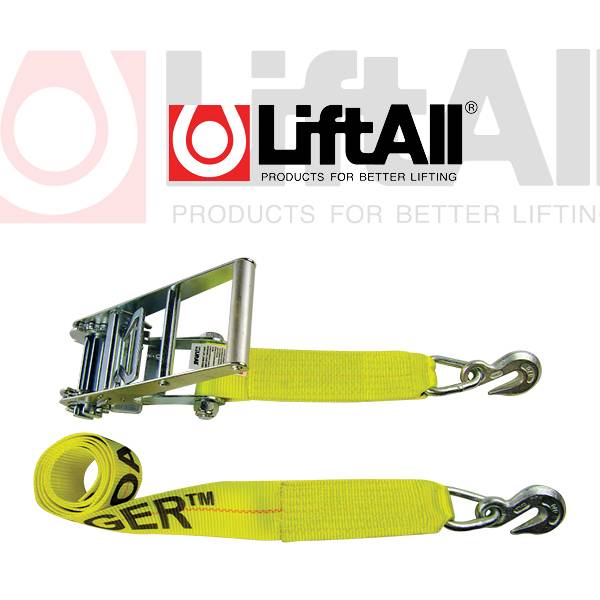

Series 15,000 – 3″ or 4″ Load Hugger™ Tiedown

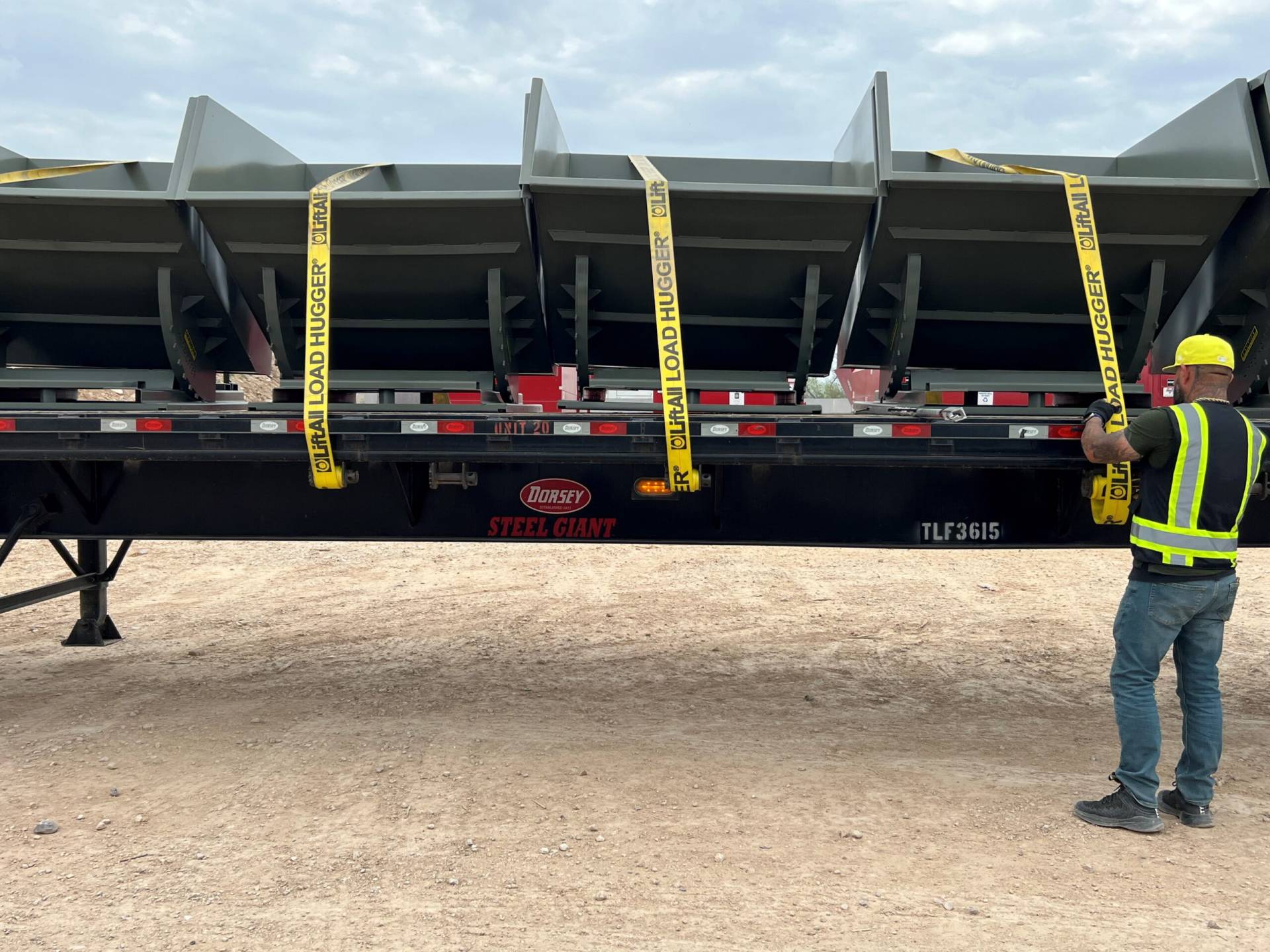

Lift-All^® Load Hugger cargo control and load securement products offer the van and flatbed operator a wide variety of options to meet U.S. DOT, FMCSA (Federal Motor Carrier Safety Administration), and CVSA (Commercial Vehicle Safety Alliance) requirements.

Series 15,000 - 3" or 4" Wide Polyester Webbing

• Ultimate Break Strength (of new assembly): 15,000 lbs.
• Working Load Limit: 5,000 lbs.
• Standard lengths are 27' or 30'.
• Non-standard lengths are available. Contact Us!
• Lift-All uses a Fastener Quality Act (FQA) compliant bolt on the ratchet buckle.
• The web attachment point includes a steel wrap to prevent cutting of the web from the corners.
• The solid mandrel used on Lift-All ratchets won’t collapse under load.
• Lift-All uses an environmentally friendly, clear zinc plating on flat hooks to prevent corrosion.

Product Info

Products shown in this table have an Ultimate Breaking Strength of 15,000 lbs. when new and a Working Load Limit (WLL) of 5,000 lbs.

Web Width		3″		4″
Ultimate Break Strength*		15,000 lbs.
Working Load Limit		5,000 lbs.

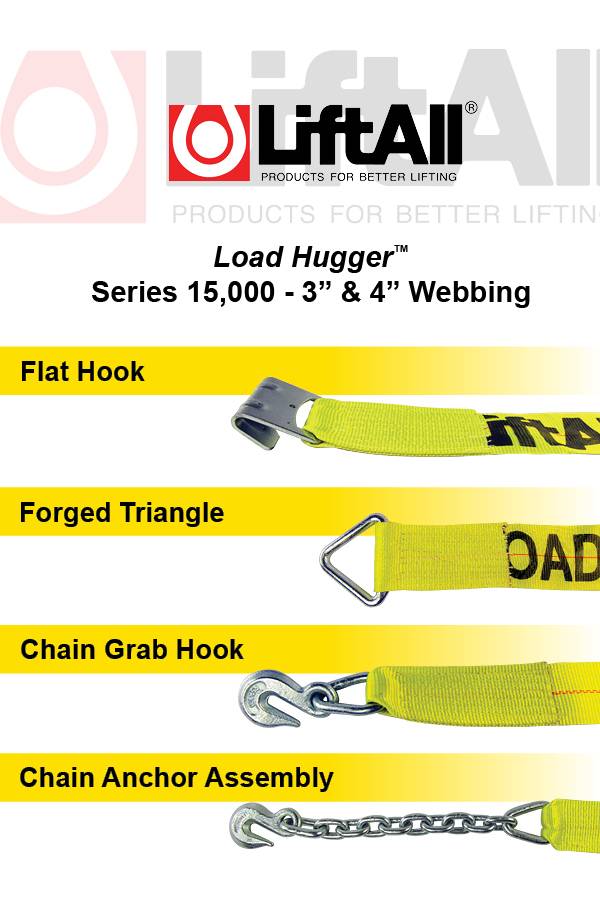

End Fitting	Length** (ft.)	Stand. Part No.	Tuff-Edge Part No.	Stand. Part No.	Tuff-Edge Part No.

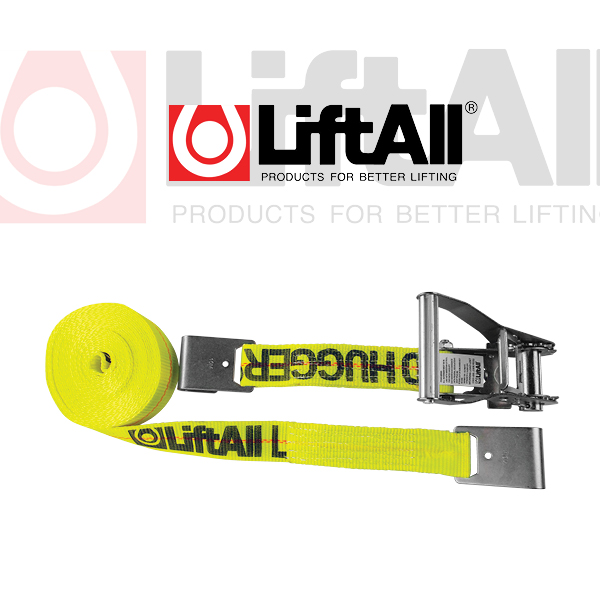

Flat Hook	27	20482	TE20482	26424	TE26424
	30	20483	TE20483	26425	TE26425
Forged Triangle	27	20484	TE20484	26430	TE26430
	30	20485	TE20485	26431	TE26431
Chain Grab Hook	27	20486	TE20486	26426	TE26426
	30	20487	TE20487	26427	TE26427
Chain Anchor Assembly	27	20488	TE20488	264232	TE26432
	30	20489	TE20489	26433	TE26433

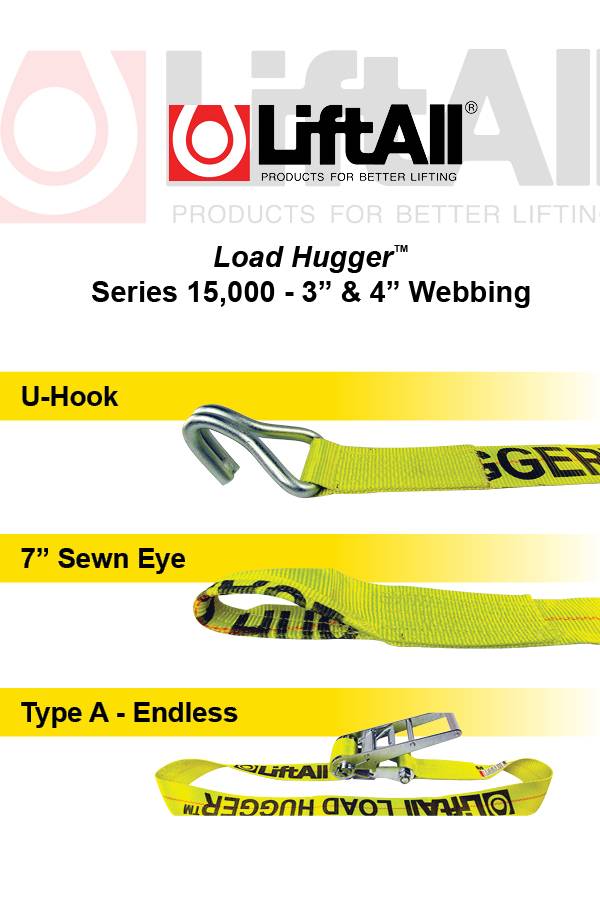

U-Hook	27	20494	TE20494	26436	TE26436
	30	20495	TE20495	26437	TE26437
7-in. Sewn Eye	27	20490	TE20490	26428	TE26428
	30	20491	TE20491	26429	TE26429

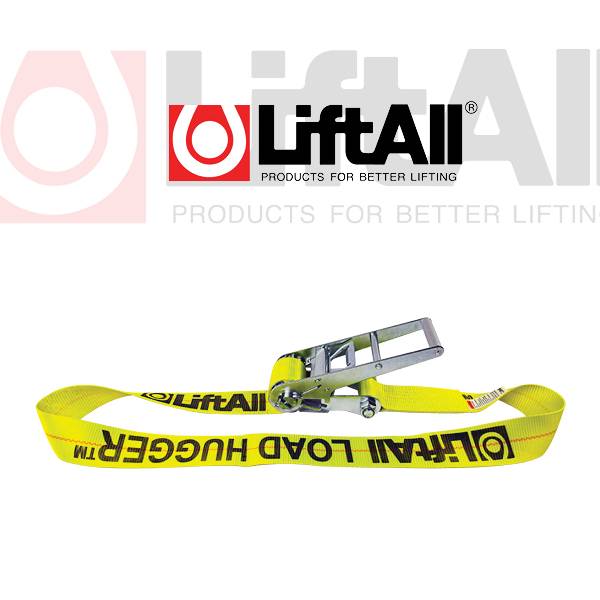

Type A- Endless	27	20492	TE20492	26434	TE26434
	30	20493	TE20493	26435	TE26435

_{* Ultimate breaking strength of the assembly when new.
** Non-standard lengths available.}

Watch the Video

Watch Next: Inspection Criteria for Webbing  |  Inspection Criteria for Chain

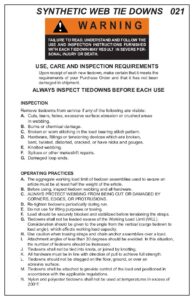

Safety Bulletins

Download the Product PDF

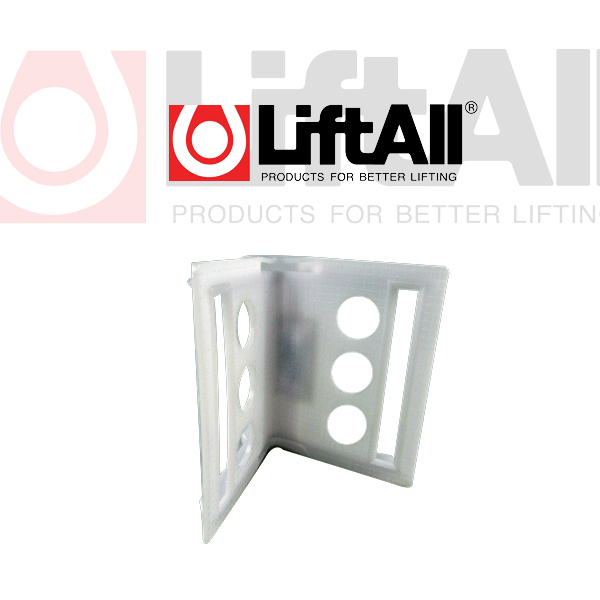

Always protect Tiedowns from being cut by corners and edges. See the full line of Sling Protection products to choose the best option for your application.
