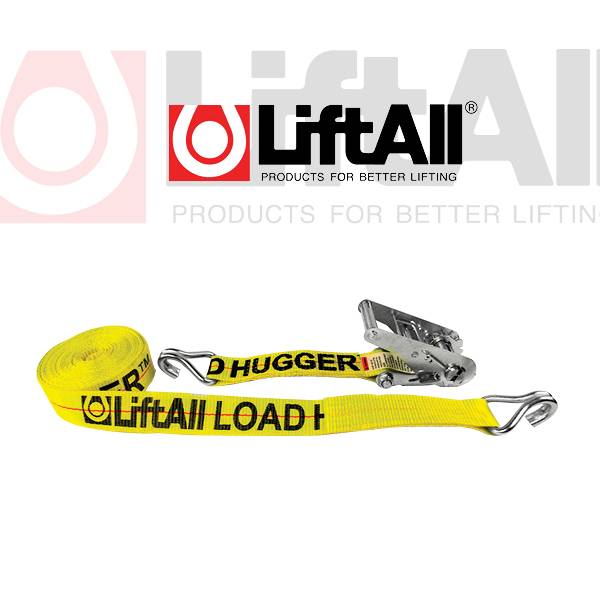

Series 5,000 – 2″ Load Hugger™ Tiedown

Lift-All^® Load Hugger cargo control and load securement products offer the van and flatbed operator a wide variety of options to meet U.S. DOT, FMCSA (Federal Motor Carrier Safety Administration), and CVSA (Commercial Vehicle Safety Alliance) requirements.

Series 5,000 - 2" Wide Polyester Webbing

• Ultimate Break Strength (of new assembly): 5,000 lbs.
• Working Load Limit: 1,600 lbs.
• Standard lengths are 27' or 30'.
• Available in standard yellow and Hi-Vis Tuff-Edge.
• Custom lengths available. Order Now!
• Lift-All uses a Fastener Quality Act (FQA) compliant bolt on the ratchet buckle.
• The web attachment point includes a steel wrap to prevent cutting of the web from the corners.
• The solid mandrel used on Lift-All ratchets won’t collapse under load.
• Lift-All uses an environmentally friendly, clear zinc plating on flat hooks to prevent corrosion.

Product Info

Products shown in this table have an Ultimate Breaking Strength of 5,000 lbs. when new and a Working Load Limit (WLL) of 1,600 lbs.

		Series 5,000
Web Width		2″
Ultimate Break Strength*		5,000 lbs.
Working Load Limit		1,600 lbs.
End Fitting	Length** (ft.)	Stand. Part No.	Tuff-Edge Part No.

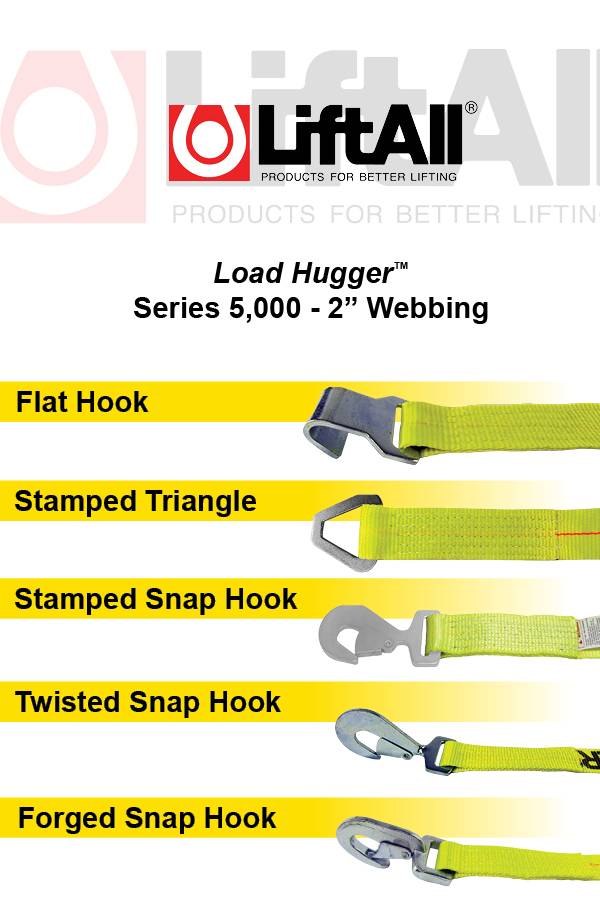

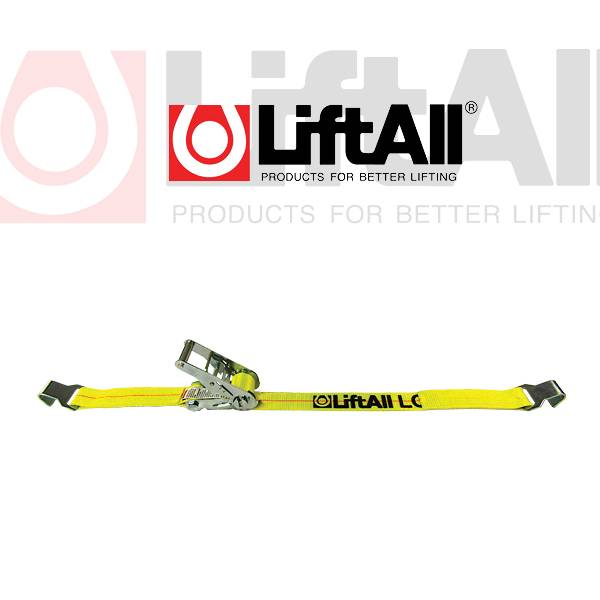

Flat Hook	27	60501	TE60501
	30	60502	TE60502

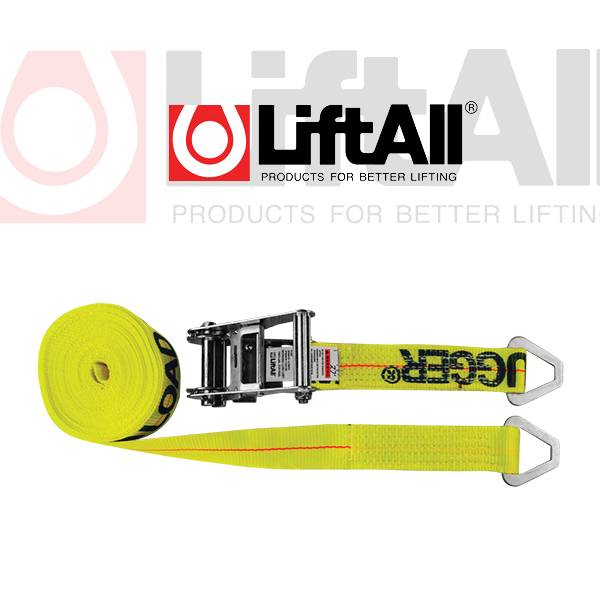

Stamped Triangle	27	60503	TE60503
	30	60504	TE60504
Stamped Snap Hook	27	60505	TE60505
	30	60506	TE60506
Twisted Snap Hook	27	60507	TE60507
	30	60508	TE60508
Forged Snap Hook	27	60509	TE60509
	30	60510	TE60510

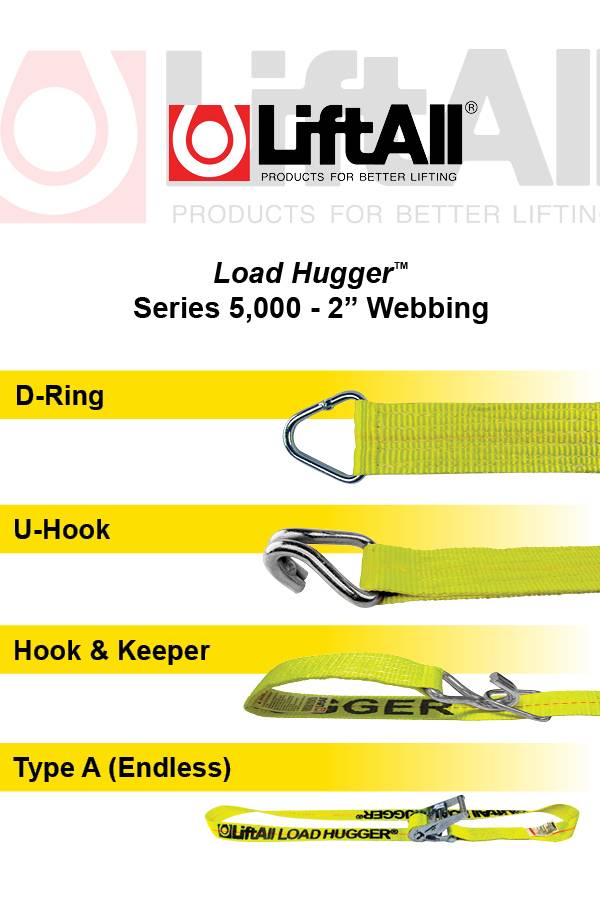

D-Ring	27	60511	TE60511
	30	60512	TE60512
U-Hook	27	60513	TE60513
	30	60514	TE60514
Hook & Keeper	27	60515	TE60515
	30	60516	TE60516
Type A- Endless	27	60517	TE60517
	30	60518	TE60518

Note: Since end terminations vary proportionally with size, check with Lift-All if precise dimensions are required.

Watch the Video

Watch Next: Inspection Criteria for Webbing

Safety Bulletin

Download the Product PDF

Always protect Tiedowns from being cut by corners and edges. See the full line of Sling Protection products to choose the best option for your application.
