Rigging Hardware
Full selection of rigging hardware is available for the entire family of lifting slings.
Lifting hardware simplifies the connection of the sling to the load and/or crane hook which can also extend the life of your sling. Many times, sling hardware can be reused for cost savings. The Lift-All® team of experts can help you determine the appropriate hardware for your lifting needs. Learn more about Lift-All’s full line of wire rope hardware, chain sling hardware and more.
Screw Pin Shackles
- Carbon shackles, with alloy pin.
- Heat treated and tempered.
- Hot dip galvanized.
Shackle Pad
- Prevents possible injury to personnel and equipment damage.
- Costs less to replace than expensive rigging hooks.
- Lightweight construction and quick installation.
Shackle Size (in.) Shackle Part Number Rated Capacity* (tons) Shackle Pad Part Number CM® Others 3/16 316SPAS 1/2 1/3 – 1/4 14SPAS 3/4 1/2 – 5/16 516SPAS 1 3/4 – 3/8 38SPAS 1-1/2 1 – 7/16 716SPAS 2 1-1/2 – 1/2 12SPAS 3 2 – 5/8 58SPAS 4-1/2 3-1/4 58SP 3/4 34SPAS 6-1/2 4-3/4 34SP 7/8 78SPAS 8-1/2 6-1/2 – 1 1SPAS 10 8-1/2 1SP 1-1/8 118SPAS 12 9-1/2 – 1-1/4 114SPAS 14 12 114SP 1-3/8 138SPAS 17 13-1/2 – 1-1/2 112SPAS 20 17 – 1-5/8 158SPAS 24 20 – 1-3/4 134SPAS 30 25 134SP 2 2SPAS 35 35 2SP *Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of our catalog.
Download our Shackle Pad catalog
Wire Rope Sling Hardware

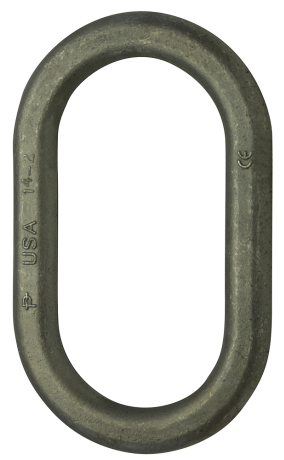

Alloy Oblong Master Link
- Domestic only.
- Drop forged through 1″.
- Larger sizes welded.
- Used on metal and synthetic slings.
- Forged master links meet or exceed the design factor requirement for both chain (4:1) and wire rope (5:1) as defined in ASME B30.9.

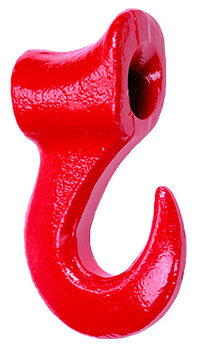

Part Number 1Rated Capacity* 5:1 Design Factor 4:1 Design Factor Tons lbs. lbs. 12DOL 3.0 6,100 7,600 34DOL 6.6 13,200 16,500 1DOL 11.2 22,400 28,000 114DOL 16.2 32,400 40,000 112DOL 24.5 49,000 61,000 134DOL 36.7 73,400 91,000 2G8OL 44.4 88,800 111,000 214G8OL 62.6 125,500 156,000 234G8OL 93.9 187,800 230,000 Sliding Choker Hooks
- Reduces rigging time of bundled loads.
- Reduces sling wear when used with thimbles. When used on multi-part wire rope slings, contact Lift-All for additional information.
- Saddle is rounded to minimize wear.
- Hook opening is large enough to take a galvanized plow steel thimble the same size as the hook size.
- For use on wire rope slings.
- Contact Lift-All for domestic hook information, including larger sizes.
Part Number 1 Rated Capacity* IMP (tons) Hook Number (Rope Dia.) 38SCHI 1.9 3/8 – 1/2 58SCHI 2.9 5/8 34SCHI 4.1 3/4 Rigging Eye Hooks – Domestic
- Drop forged alloy steel.
- Load rating marked on each hook body.
- Pre-drilled latch tab allows the addition of a heavy-duty latch.
- Latch not included.

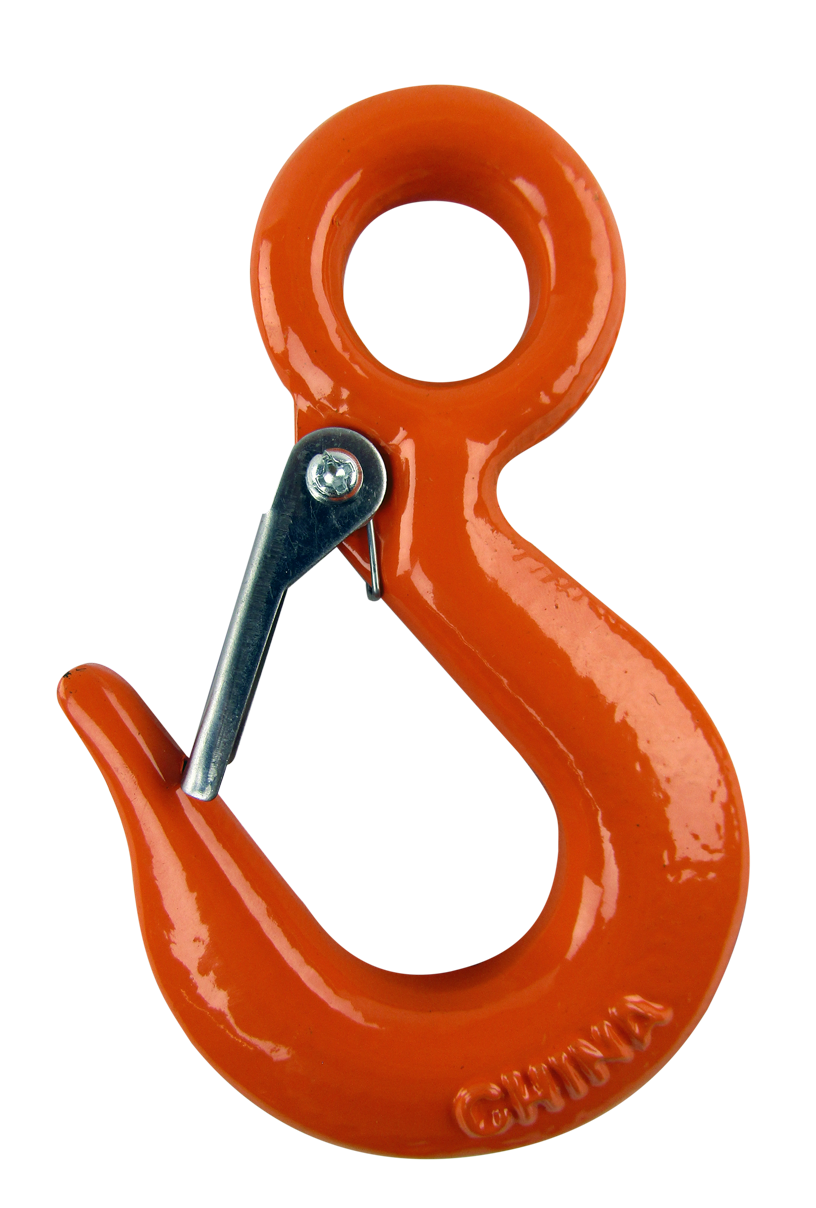

Hook Material Part Number 1Rated Capacity* (tons) Latch Kit Part Number Alloy 1AEH 1 1LK 112AEH 1-1/2 112LK 2AEH 2 2LK 3AEH 3 3LK 5AEH 5 5LK 7AEH 7 7LK 11AEH 11 11LK 15AEH 15 15LK 22AEH 22 22LK Carbon 20CSEH 20 Call for Options 30CSEH 30 40CSEH 40 Rigging Eye Hooks – Import
Maintains all the basic features of Domestic Eye Rigging Hooks plus…
- Standard eye hook on roundsling, web bridles and wire rope slings.
- Available only in alloy steel.

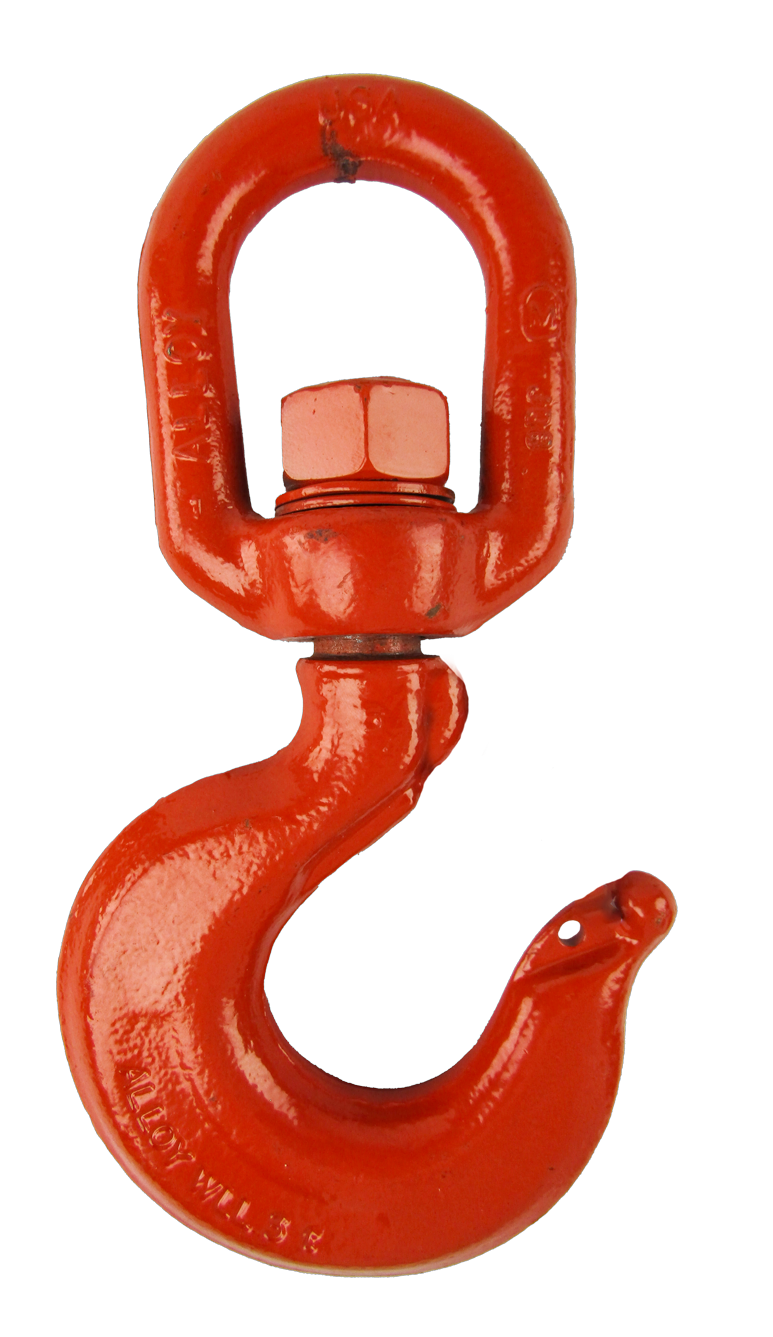

Part Number 1Rated Capacity* (tons) 1AEHI 1 112AEHI 1-1/2 2AEHI 2 3AEHI 3 5AEHI 4-1/2 7AEHI 7 11AEHI 11 15AEHI 15 Swivel Eye Rigging Hooks – Domestic
- Pre-drilled for latches.
- Heat-treated, quenched and tempered.
- Design factor 5:1.
- Latch not included. Specify at the time of ordering.

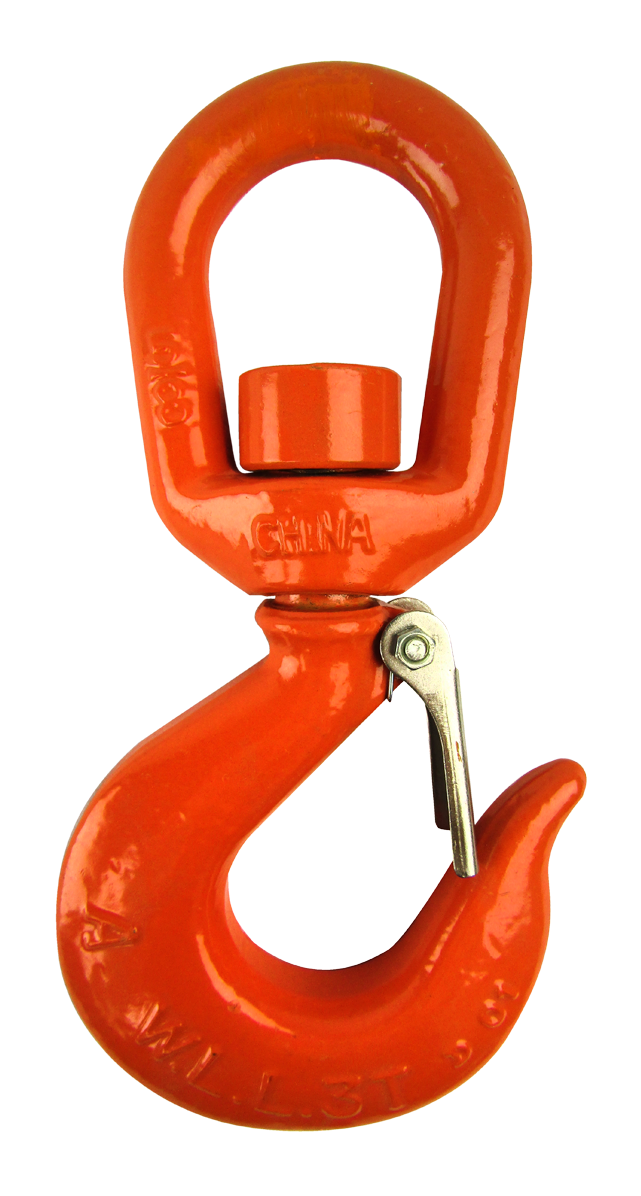

Part Number 1Rated Capacity* (tons) Latch Kit Part Number 1ASWH 1 1LK 112ASWH 1-1/2 112LK 2ASWH 2 2LK 3ASWH 3 3LK 5ASWH 5 5LK 7ASWH 7 7LK 11ASWH 11 11LK 15ASWH 15 15LK 22ASWH 22 22LK Swivel Eye Rigging Hooks – Import
- Alloy steel
- Used on wire rope and synthetic
slings and Lift-All‘s GripHook®. - Latches included.
Part Number 1Rated Capacity* (tons) 112ASWHLI 1-1/2 2ASWHLI 2 3ASWHLI 3 5ASWHLI 4-1/2 7ASWHLI 7 11ASWHLI 11 15ASWHLI 15 1 Rated Capacity also referred to as Working Load Limit.
* WARNING: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of the Lift-All catalog.Chain Sling Hardware
Chain Sling Eye Hook
- For use with both G80 and G100 chain.
- Quenched and tempered alloy steel.
- Fatigue rated.
- 100% proof-tested.
- Shown with optional latch. If latches are required, specify when ordering.
Part Number Grade Chain Size (in.) 1Rated Capacity* (lbs.) Latch Kit Part Number 732DESH 100 7/32 2,700 732LK 932DESH 100 9/32 4,300 932LK 38DESH 100 3/8 8,800 38LK 12DESH 100 1/2 15,000 12LK 58DESH 100 5/8 22,600 58LK 34DESH 100 3/4 35,300 34LK 78G8ESH 80 7/8 34,200 78LK 1G8ESH 80 1 47,700 1LK 114G8ESH 80 1-1/4 72,300 114LK Clevis Sling Hook
- For use with G80 and G100 chain.
- Unique cradle grab design.
- Replacement pin available.
- Quenched and tempered alloy steel.
- Shown with optional latch. If latches are required, specify when ordering.
Part Number Chain Size (in.) 1Rated Capacity* (lbs.) Latch Kit Part Number 932DCSH 9/32 4,300 932LKCE 38DCSH 3/8 8,800 38LKCE 12DCSH 1/2 15,000 12LKCE 58DCSH 5/8 22,600 58LKCE 34DCSH 3/4 35,300 34LKCE Foundry Hook
- For use with both G80 & G100 chain.
- Throat opening to 6″.
- Quenched and tempered alloy steel.
- 100% proof-tested.
- Fatigue rated.
- Durable powder-coated finish.
Part Number Grade Chain Size (in.) 1Rated Capacity* (lbs.) 932DEFH 100 9/32 4,300 38DEFH 100 3/8 8,800 12DEFH 100 1/2 15,000 58DEFH 100 5/8 22,600 34DEFH 100 3/4 35,300 78DEFH 100 7/8 34,200 1G8EFH 80 1 47,700 114G8EFH 80 1-1/4 72,300 Eye Cradle Grab Hook
- For use with G80 & G100 chain.
- Fatigue rated.
- 100% proof-tested.
- Durable powder-coated finish.
- Quenched tempered alloy steel.
- Unique cradle grab design.
Part Number Grade Chain Size (in.) 1Rated Capacity* (lbs.) 732DECGH 100 7/32 2,700 932DECGH 100 9/32 4,300 38DECGH 100 3/8 8,800 12DECGH 100 1/2 15,000 58DECGH 100 5/8 22,600 34DECGH 100 3/4 35,300 78G8ECGH 80 7/8 34,200 1G8ECGH 80 1 47,700 114G8ECGH~ 80 1-1/4 72,300 Clevis Cradle Grab Hook
- For use with G80 and G100 chain.
- Unique cradle grab design.
- 100% proof-tested and fatigue rated.
- Quenched tempered alloy steel.
- Durable powder-coated finish.
- Replacement pin available.
Part Number Chain Size (in.) 1Rated Capacity* (lbs.) 932DCGH 9/32 4,300 38DCGH 3/8 8,800 12DCGH 1/2 15,000 58DCGH 5/8 22,000 34DCGH 3/4 35,300 1 Rated Capacity also referred to as Working Load Limit.
* WARNING: Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Do not use slings at angles of less than 30°. Refer to the Effect of Angle chart found in the General Information section of the Lift-All catalog.
