Plate Clamps
Know For Superior Quality & Durability
These clamps meet exacting standards and constantly outperform their specifications. Lift-All® offers an extensive selection of plate clamps for lifting. Reliability means less downtime anywhere you need to lift, shift, and move big weights.
The size, shape, weight, orientation of your lift at the beginning, and orientation of the load need to end up at the end of the lift to determine which clamp will work for your application. Lift-All offers lightweight ergonomic designs for horizontal and vertical lifting needs, locking features and serrated gripping cams.
Model VL & VLC
Horizontal to Vertical – 180° rotation
- Turn a single steel plate from horizontal to vertical to horizontal through a 180° arc.
- Lock open / lock closed feature facilitates loading and unloading clamp while it protects grippers from damage and closes on material for a more secure lift.
- Working parts remain inside the body when the clamp is locked closed or locked open.
- Model VLC offers the same features as model VL, except it locks closed only.
Model VL-U & VLC-U
Allows for Side Loading of the Lifting Shackle – 90°
- Both models rated lift capacity lowers as the angle of the pull increases.
- VL-U and VLC-U offer the same features as model VL, except it locks closed only.
- Clamp requires the operator to manually hold in the “open” position when loading and unloading and locks closed onto the material for a more secure lift.
Model HL Basics

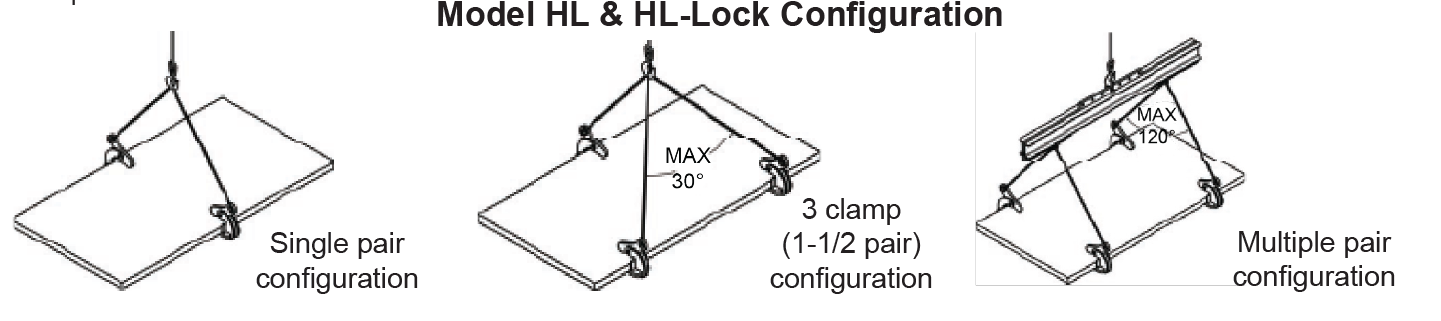

Used in pairs or any multiple arrangement to lift and transfer a single plate or stacked plates in a horizontal position only.
Horizontal
- Use in pairs or tripod arrangements to lift and transfer plates in a horizontal position only.
- Serrated gripping cams.
- Available with smooth non-marring cams.
- Order 1 each for quantity of 2 Plate Clamps.
Part Number *Rated Capacity (tons) HL-0.5-A 0.50 HL-1.0-A 1 HL-2.0-A 2 HL-3.0-A 3 HL-6.0-A 6 HL-8.0-A 8 Horizontal – Locking
- Locks open to facilitate loading and unloading clamp and protects grippers from damage.
- Locks closed onto material for a more secure lift.
- Available with universal shackle for increased angle of side load. Call for pricing.
Part Number *Rated Capacity (tons) HL-Lock- 2.0-A 2 HL-Lock -4.0-A 4 HL-Lock-6.0-A 6 HL-Lock-8.0-A 8
