Cargo Control
Load Hugger™ Tiedowns: Multiple Styles, End Fittings & Weight Classes
Lift-All® Load Hugger Tiedowns meet U.S. DOT, FMCSA (Federal Motor Carrier Safety Administration), and CVSA (Commercial Vehicle Safety Alliance) requirements. Select from multiple end-fittings, a standard yellow polyester, or a stronger, more visible Hi-Vis Tuff-Edge® green tiedown material for your ideal tiedown. Both webbing options are flexible, conform to the load and safely control the load which protects costly cargo from damage. Lift-All tiedowns include cam buckle and ratchet tiedowns, as well as winch straps with winches. Read safe operating practices for Load Hugger tiedowns in the Lift-All catalog before use.
Vehicle Recovery Straps Rated for Lifting, Towing & Pulling
Tow straps with metal end fittings are considered hazardous and are therefore not included in any Lift-All vehicle recovery straps or tow straps. The ResQ-All™ strap combines Lift-All‘s Tuff-Edge® III Vehicle Recovery Strap and Tow-All™ to assist in better vehicle recovery. The strap is rated for pulling, lifting and recovery operations. Discover the advantages of utilizing tow straps specifically designed for heavy-duty lifting.
- ResQ-All™
- Container Sling
- Tuflex® Vehicle Recovery Straps
- Ratchet Assemblies
- Series 1,000 – 1″ Wide
- Series 5,000 & 10,000 – 2″ Wide
- Series 15,000 – 3″ & 4″ Wide
- Winch Straps
- Winch Lines

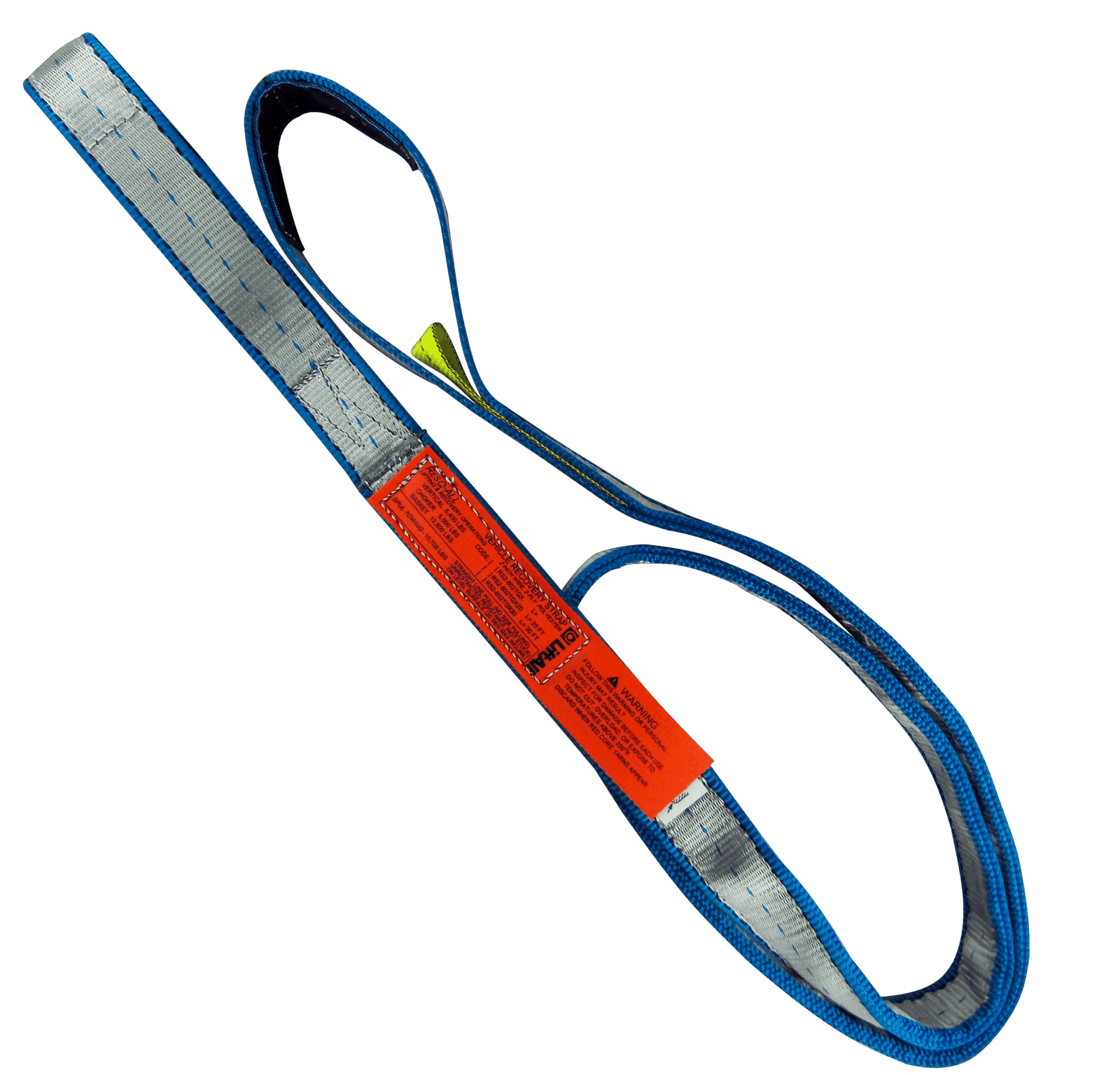

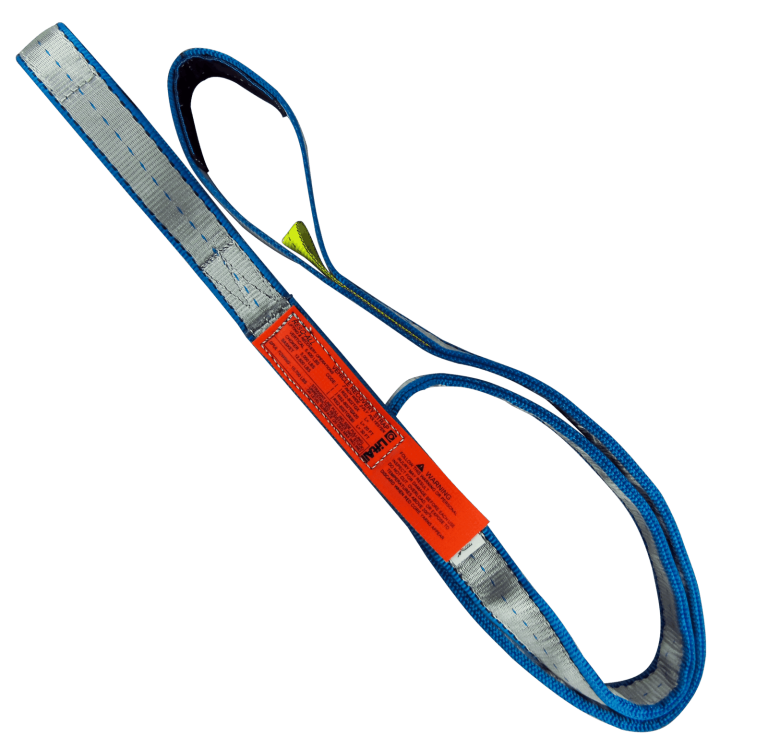

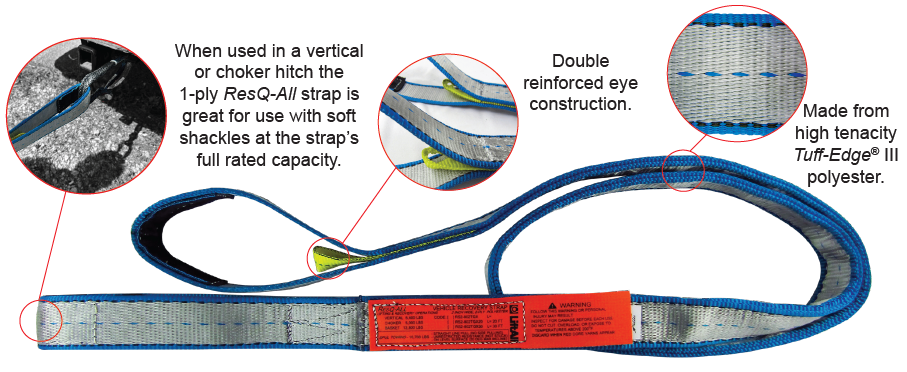

ResQ-All
Rated for vehicle recovery, towing and lifting!
- Backup Attachment Points in Each Eye – A secondary yellow attachment
loop in each eye allows for attachment of back-up lanyards to improve safety should an unplanned release of the sling occur during a recovery operation. Its use is recommended whenever any uncertainty exists about the amount of loading or the integrity of the attachment points. - Strength & Toughness – Made from high tenacity Tuff-Edge® III polyester to provide the strength and dynamics needed for towing and recovery operations.
- SPUL Towing – A higher Straight-Line Pulling Unrestricted on Level Surface (SPUL) Towing Rating is also provided.
- When used in a vertical or choker hitch the 1-ply ResQ-All strap is great for use with soft shackles at the strap’s full rated capacity.
- Each eye has a Cordura-lined bearing point for longer sling life.
- Standard length (ft.): 16, 20, 26, 30.
Ply Part Number Strap Width (in.) Rated Capacity (lbs.) Towing* @ 3:1 Lifting & Recovery @ 5:1 Vertical Choker Basket** 1 Ply RS1802TG 2 5,300 3,200 2,500 6,400 RS1803TG 3 8,000 4,800 3,800 9,600 RS1804TG 4 10,600 6,400 5,000 12,800 RS1806TG 6 16,000 9,600 7,700 19,200 2 Ply** RS2802TG 2 10,600 6,400 5,000 12,800 RS2803TG 3 14,600 8,800 7,040 17,600 RS2804TG 4 19,100 11,500 9,200 23,000 RS2806TG 6 27,500 16,500 13,200 33,000 RS2808TG 8 32,000 19,200 15,400 38,400 RS2810TG 10 36,600 22,400 17,900 44,800 RS2812TG 12 44,800 26,900 21,500 53,800 * SPUL Towing – A higher Straight-Line Pulling Unrestricted on Level Surface (SPUL) Towing Rating.
**When using a 2-ply strap or basket hitch a 50% rating reduction factor should be applied whenever using soft shackles.- Backup Attachment Points in Each Eye – A secondary yellow attachment

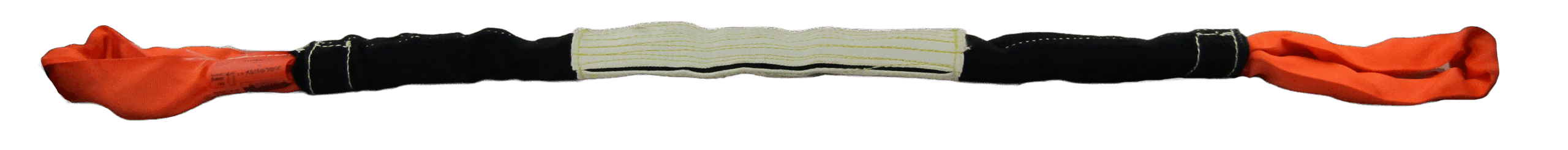

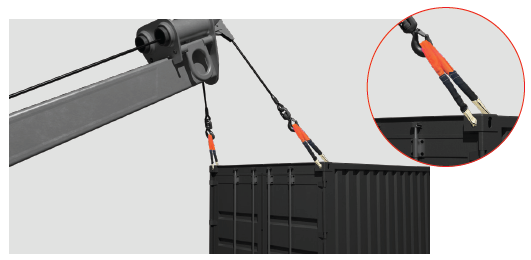

Container Sling
Lift-All’s Container Sling combines the patented technology of Edge Defender® Flex Plus and the high capacity, ultra lightweight DynaFlex making container recovery safe and easy. The cut protection pad covers the roundsling body creating two eyes for easy attachment to the crane hook.- Designed specifically to fit into tight connection points on the container while maintaining a high capacity.
- Comes with a unique cut protection pad to assist in protecting the sling from edges yet remains flexible
enough to move through tight spaces. - Ensure the white Dyneema section of the pad is outward facing to get the most protection at the main point of contact.
- Insert the Container Sling through the connection point on the container. Ensure equal parts of the white Dyneema pad are on either side of the connection point.
Part Number Basket Capacity (lbs.) Cut Protection Pad Width (in.) TSCONREC20X5 20,000 8 TSCONREC30X5 30,000 8 TSCONREC40X5 40,000 10
Tuflex Vehicle Recovery StrapsThe Heavy-Duty Recovery Straps!
Our Tuflex vehicle recovery strap offers the most rugged synthetic strap on the market. We start with our standard Tuflex Roundsling:
- Add an additional jacket of texturized, abrasion resistant nylon, installed over the body, creating an eye/eye style.
- The 18″ long eyes are then covered with ballistic nylon material for additional protection.
- An 18″ long sliding sleeve wear pad provides added protection against load edges.
Part Number Ultimate Breaking
Strength* (lbs.)Towing
Capacity (lbs.)TSEN90X20
TSEN90X3042,000 14,000 TSEN120X20
TSEN120X3052,500 17,500 TSEN150X20
TSEN150X3066,000 22,000 TSEN180X20
TSEN180X3084,000 28,000 TSEN240X20
TSEN240X30105,900 35,300 TSEN360X20
TSEN360X30154,800 51,600 TSEN600X20
TSEN600X30264,900 88,300 TSEN800X20
TSEN800X30330,000 110,000 TSEN1000X20
TSEN1000X30450,000 150,000 *Ultimate breaking strength when new.
1Do not exceed towing capacity.
Above ratings reflect a 3:1 design factor.Type A Assemblies

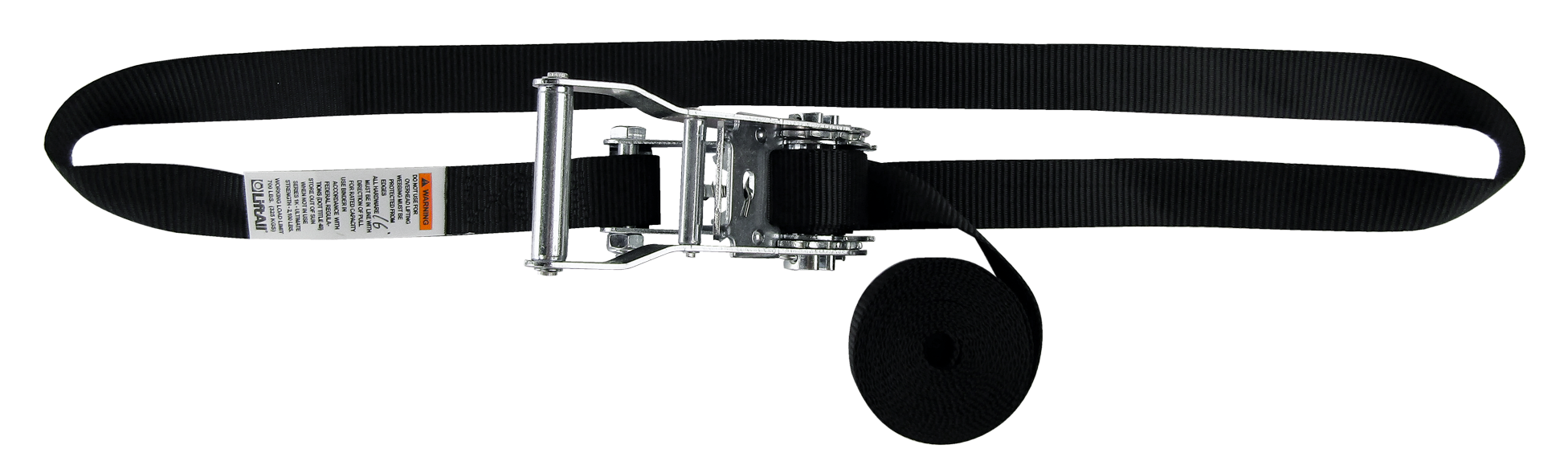

One-piece assemblies for use without end fittings. Length measured from ratchet mandrel to end of webbing.
Type B Assemblies
Two-pieces assemblies with one piece attached to the ratchet, and the other end is adjustable. Numerous end fittings are available to handle any requirements. See our catalog for more information and end-fitting options.
Series 1,000
1” Wide Polyester Webbing
Ultimate strength: 2,100 lbs.*
Working Load Limit: 700 lbs.**Series 1,000 Exception: Series 1,000 Ratchet Assembly with Flat Hooks, Ultimate Strength is 1,000 lbs., and working load limit is 330 lbs.
Series 5,0002” Wide Polyester Webbing
Ultimate strength: 5,000 lbs.
Working Load Limit: 1600 lbs.Series 10,000
2” Wide Polyester Webbing
Ultimate strength: 10,000 lbs.
Working Load Limit: 3,300 lbs.Series 15,000
3” or 4″ Wide Polyester Webbing
Ultimate strength: 15,000 lbs.
Working Load Limit: 5,000 lbs.Load Hugger Series 1,000 – 1″ Wide Tiedowns

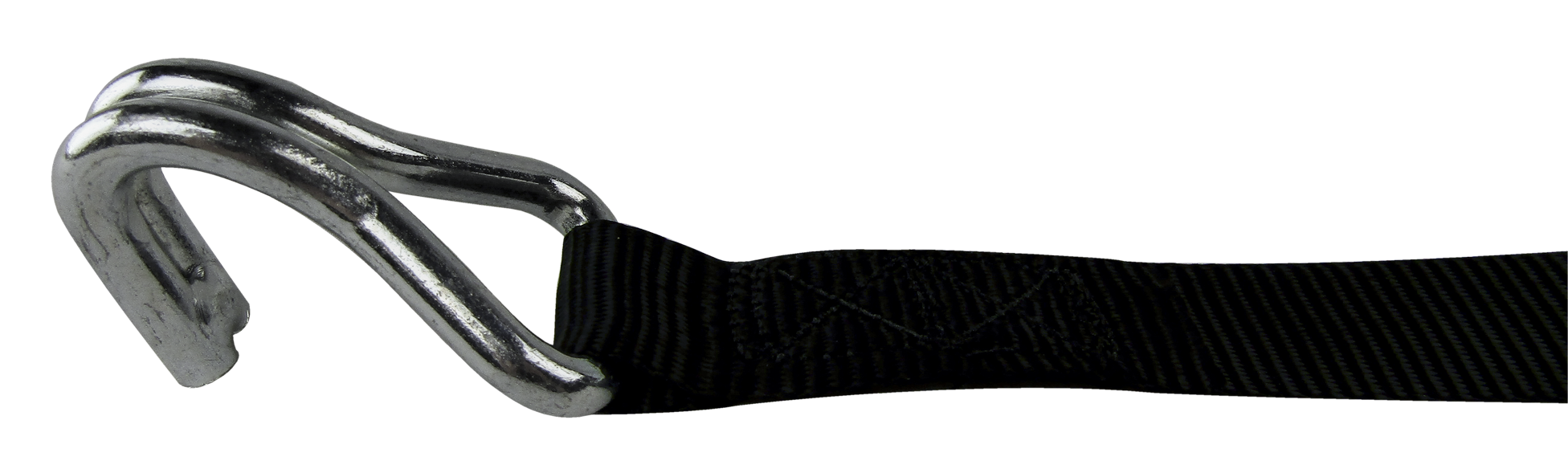

U-Hook

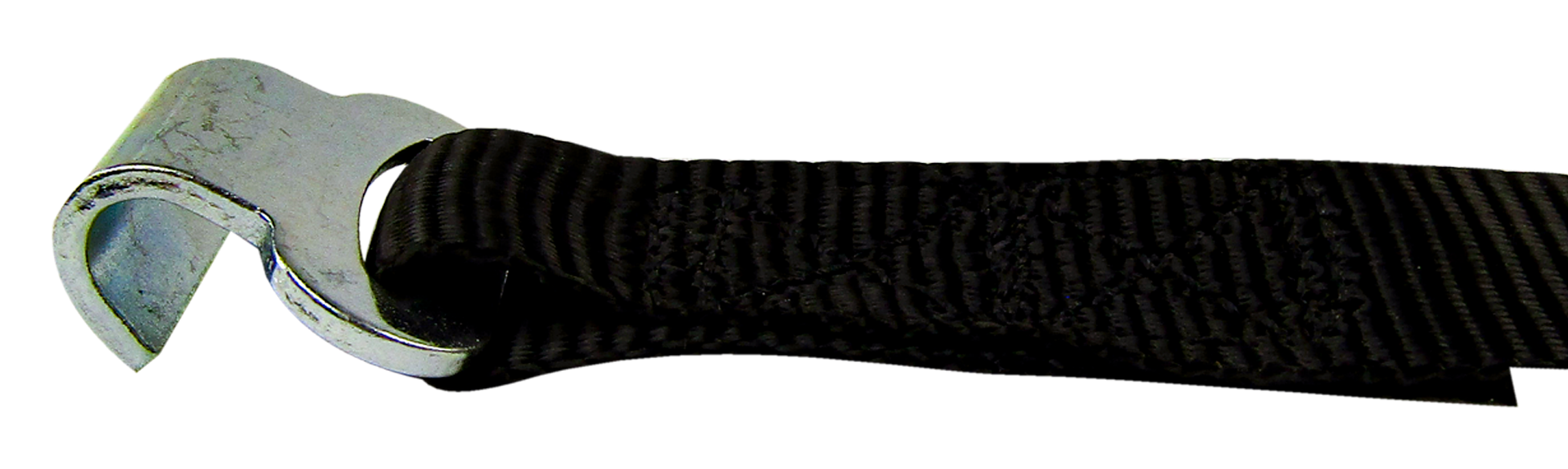

Flat Hook

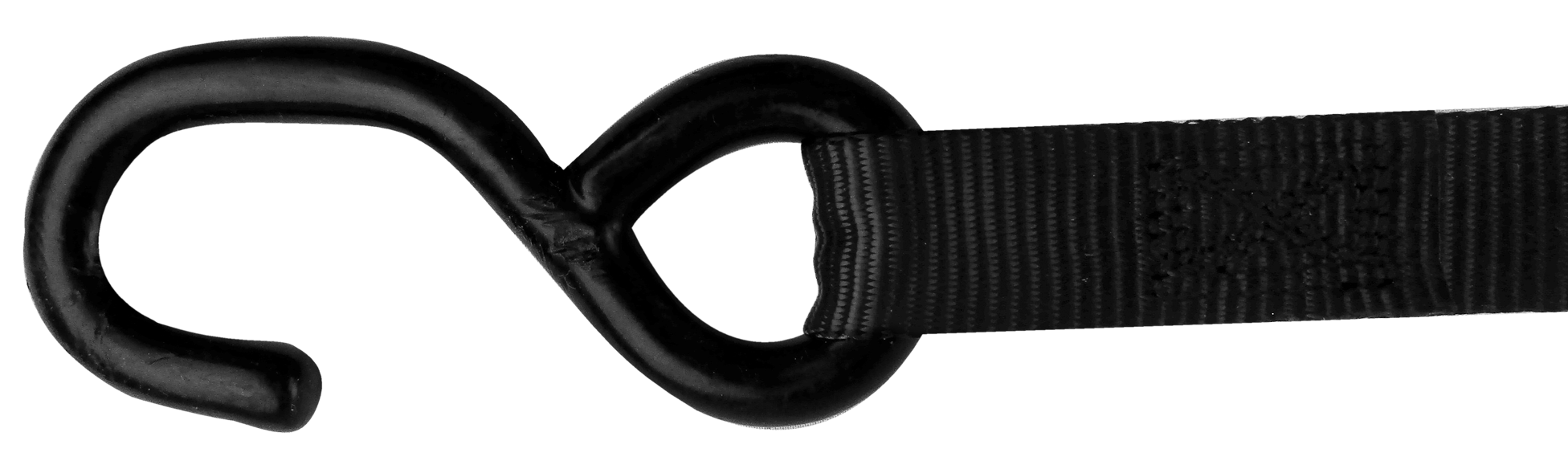

Open Hook – PE Coated

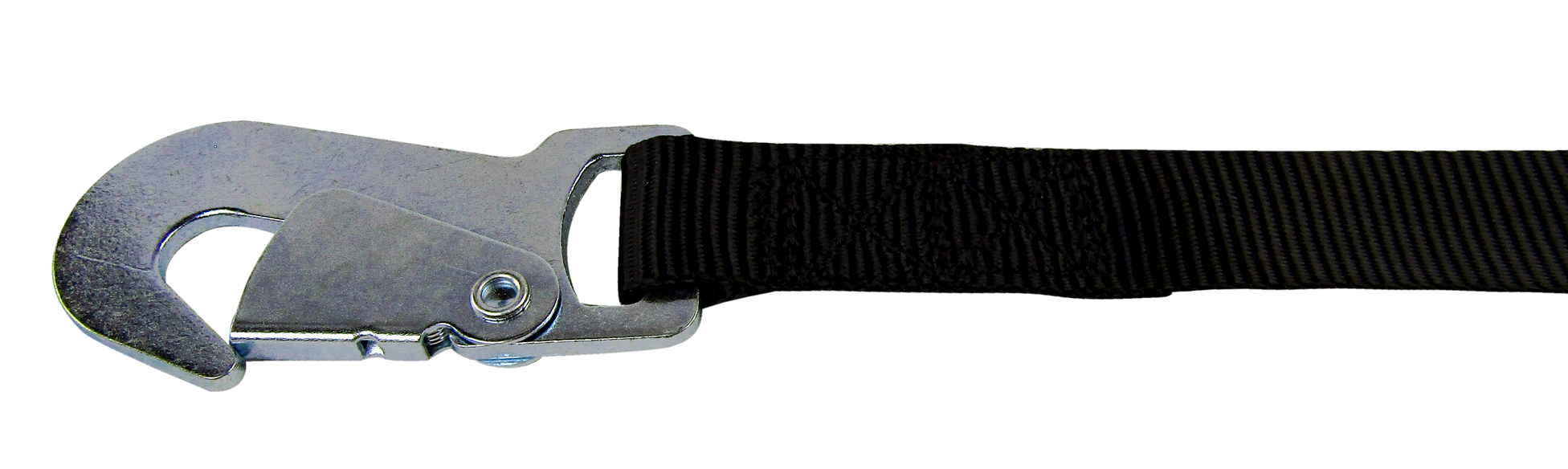

Stamped Snap Hook

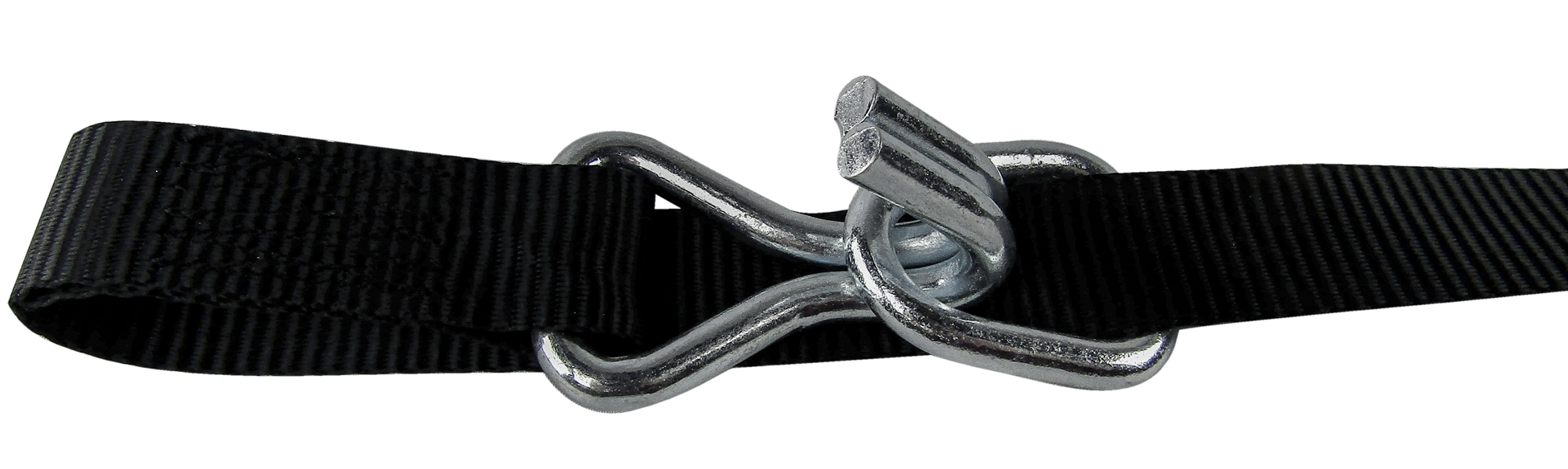

Hook & Keeper

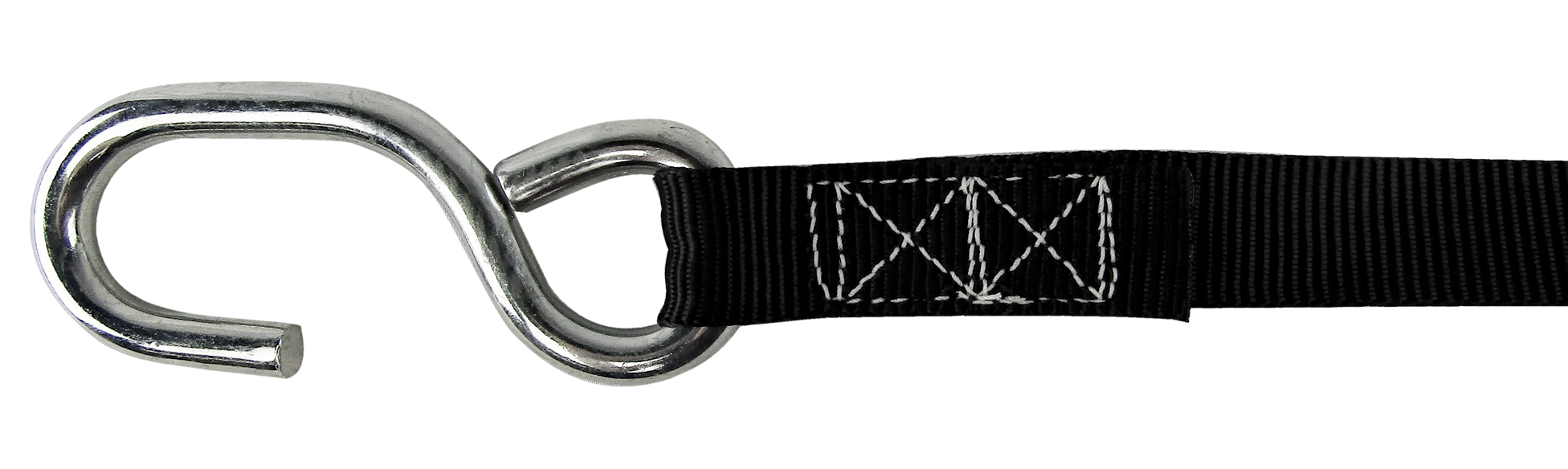

Open Hook – Zinc Plated
Type A – Endless End Fitting Buckle Part Number Working Load Limit (lbs.) Ultimate Breaking Strength* (lbs.) 10′ Length** 15′ Length** U-Hook Ratchet 60101 6A101 700 2,100 Cam Buckle 60109 6A109 330 1,000 Flat Hook *** Ratchet 60102 6A102 700 2,100 Cam Buckle 60110 6A110 330 1,000 Open Hook – Vinyl Coated Ratchet 60103 6A103 700 2,100 Cam Buckle 60111 6A111 330 1,000 Stamped Snap Hook Ratchet 60104 6A104 700 2,100 Cam Buckle 60113 6A113 330 1,000 Hook & Keeper Ratchet 60105 6A105 700 2,100 Cam Buckle 60114 6A114 330 1,000 Open Hook – Zinc Plated Ratchet 60106 6A106 700 2,100 Cam Buckle 60112 6A112 330 1,000 Type A (Endless) Ratchet 60107 6A107 700 2,100 Cam Buckle 60108 6A108 330 1,000 * Ultimate breaking strength of assembly when new.
** Non-standard lengths available.
*** Exception: Series 1,000 Ratchet Assembly with Flat Hooks, WLL is 330 lbs. and Ultimate Breaking Strength is 1,000 lbs.Load Hugger Series 5,000 & 10,000 – 2″ Wide Tiedowns

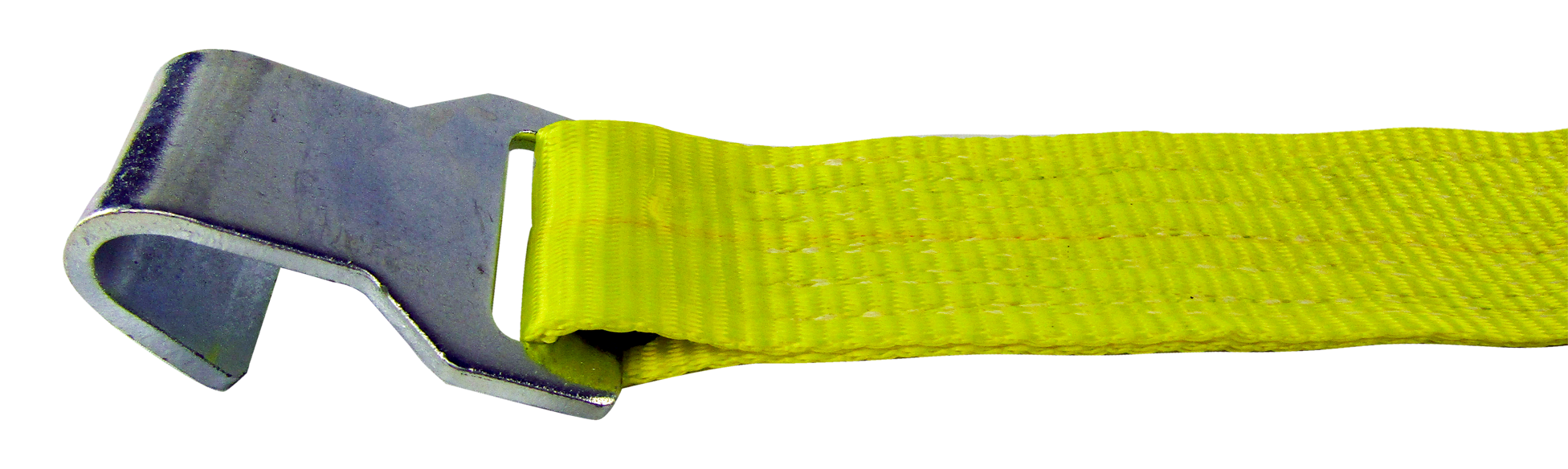

Flat Hook

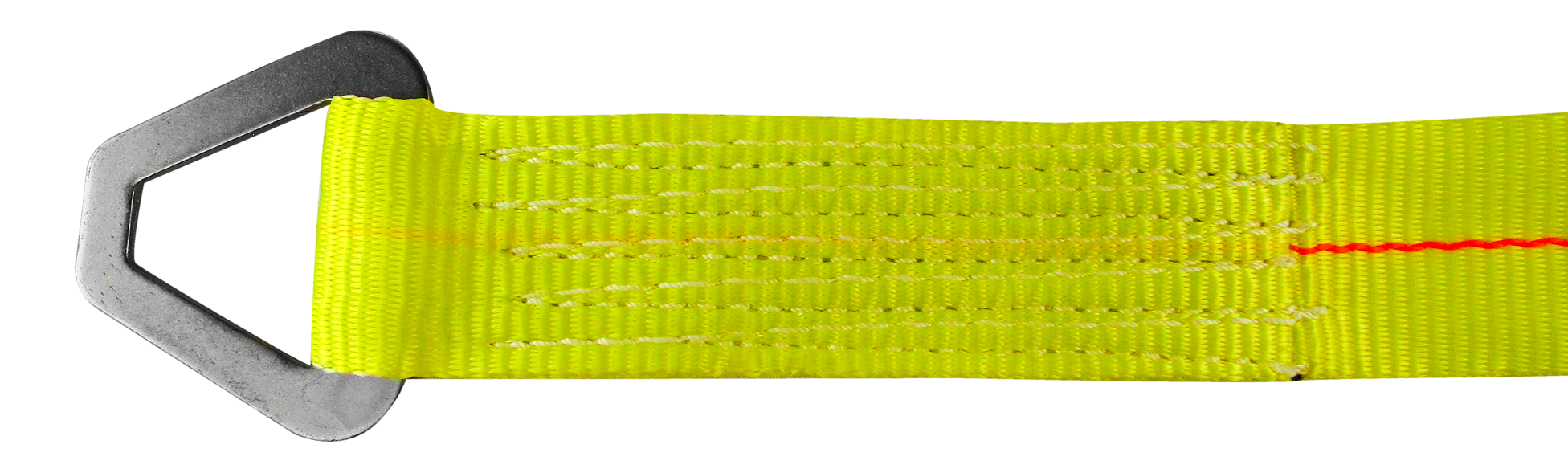

Stamped Triangle

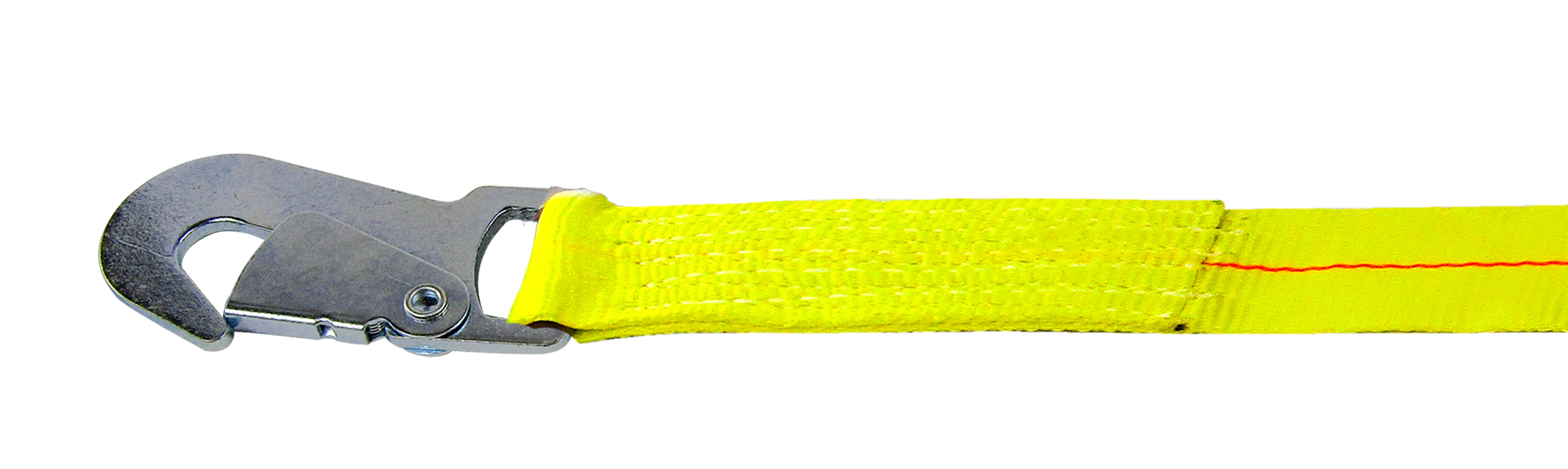

Stamped Snap Hook

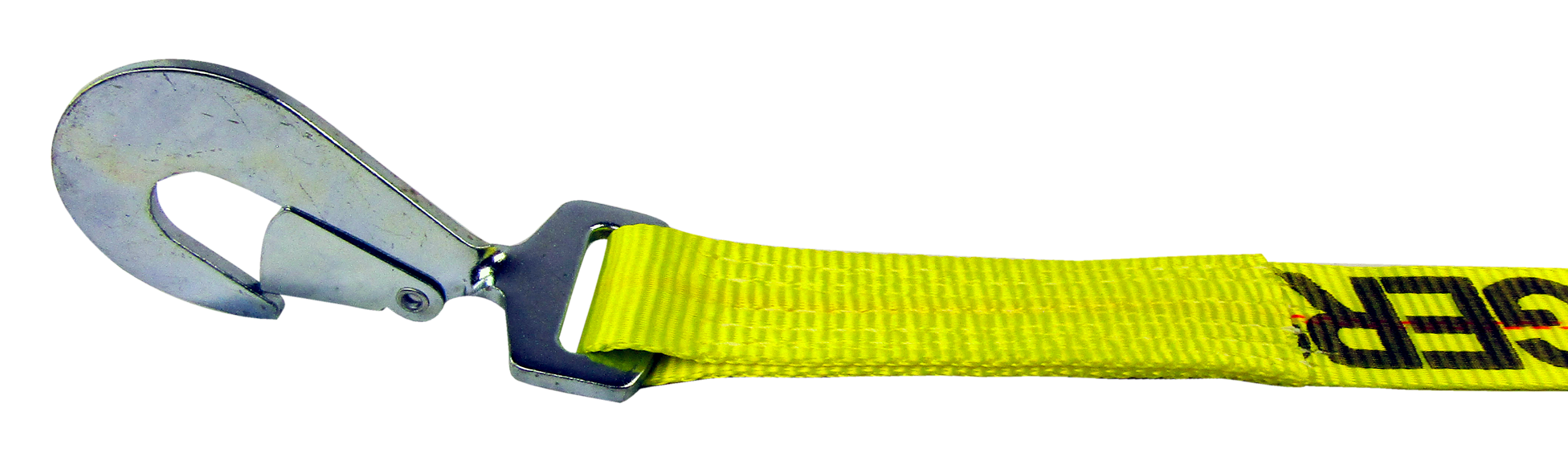

Twisted Snap Hook

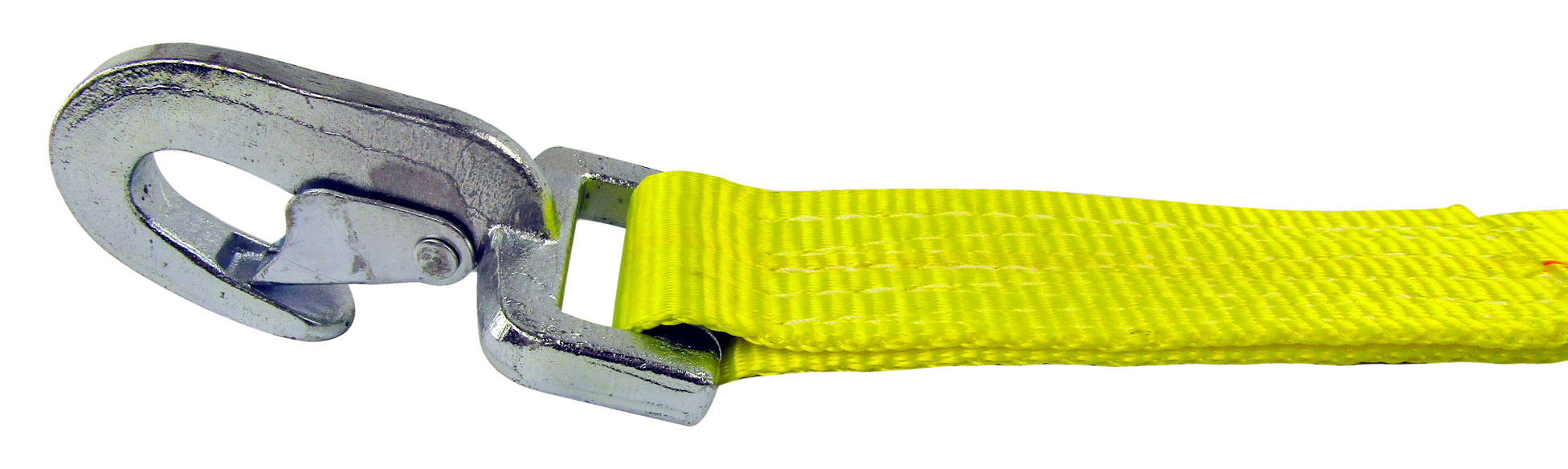

Forged Snap Hook

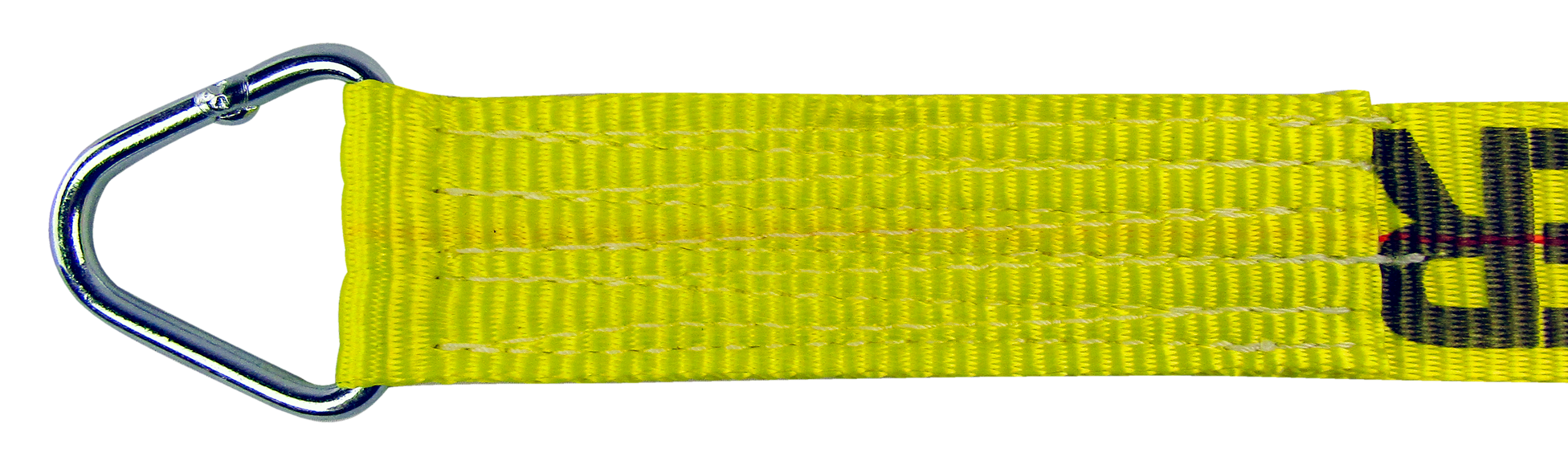

D-Ring

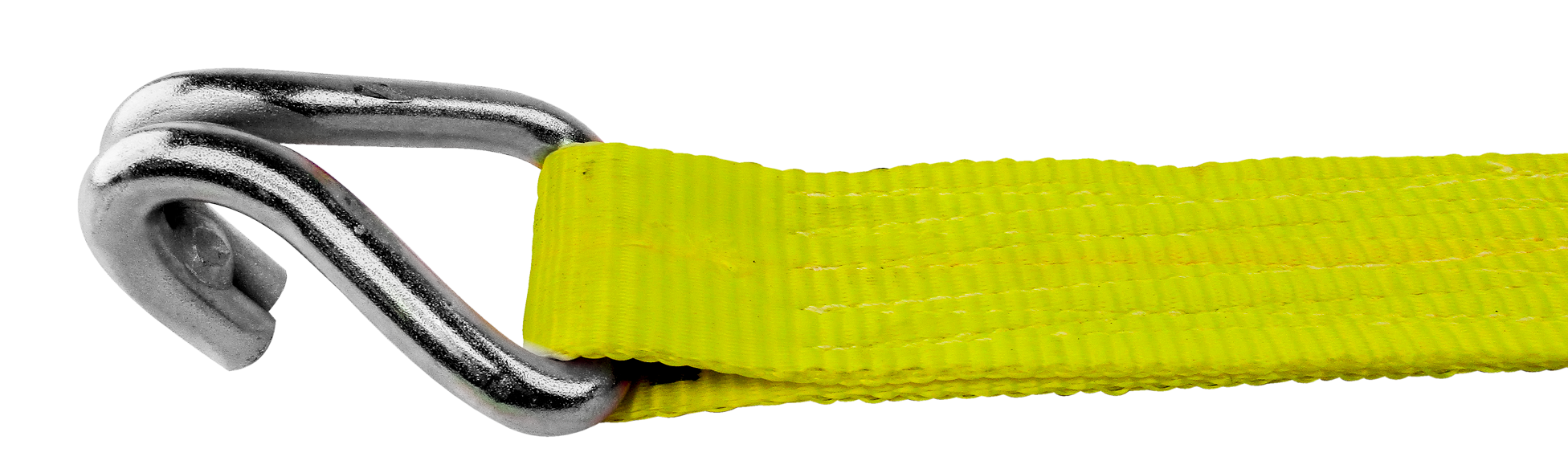

U-Hook

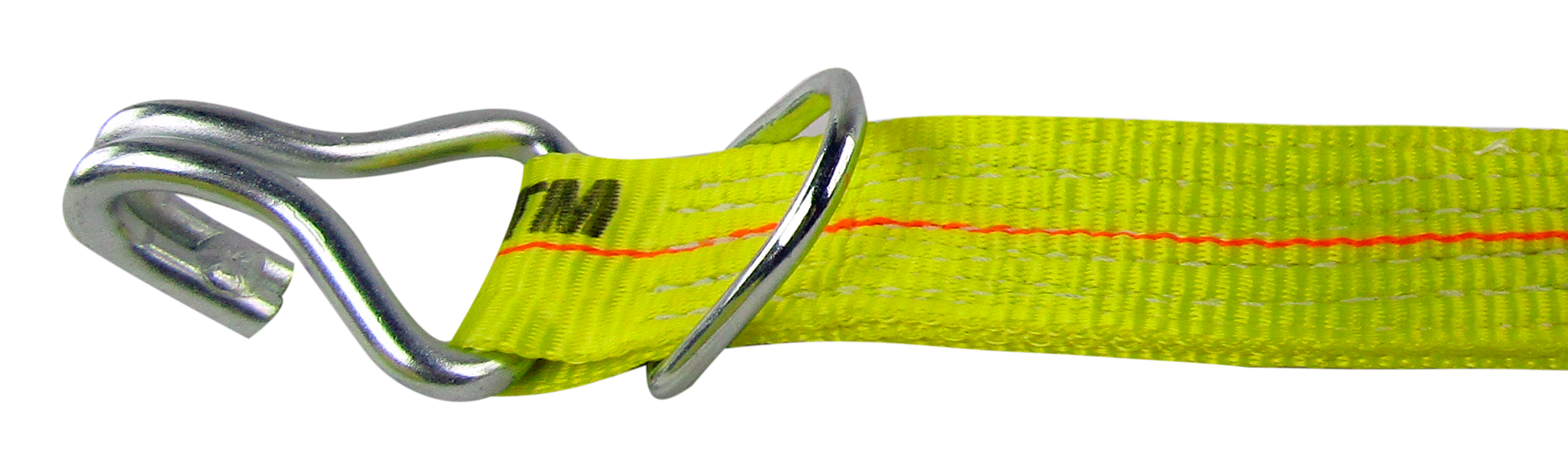

Hook & Keeper

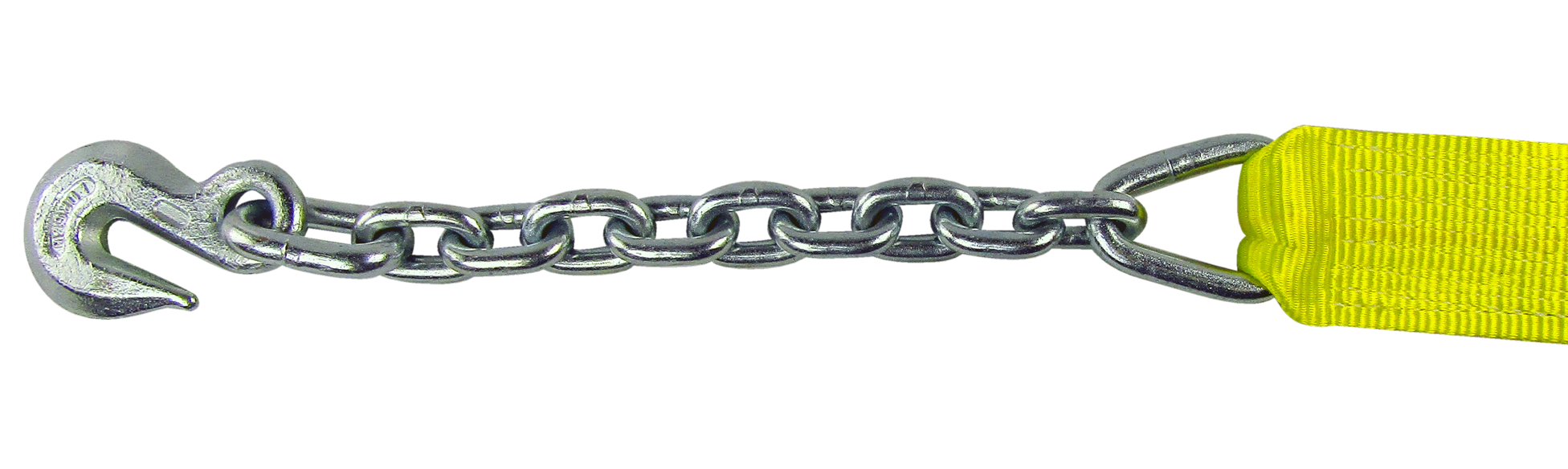

Chain Anchor Assembly

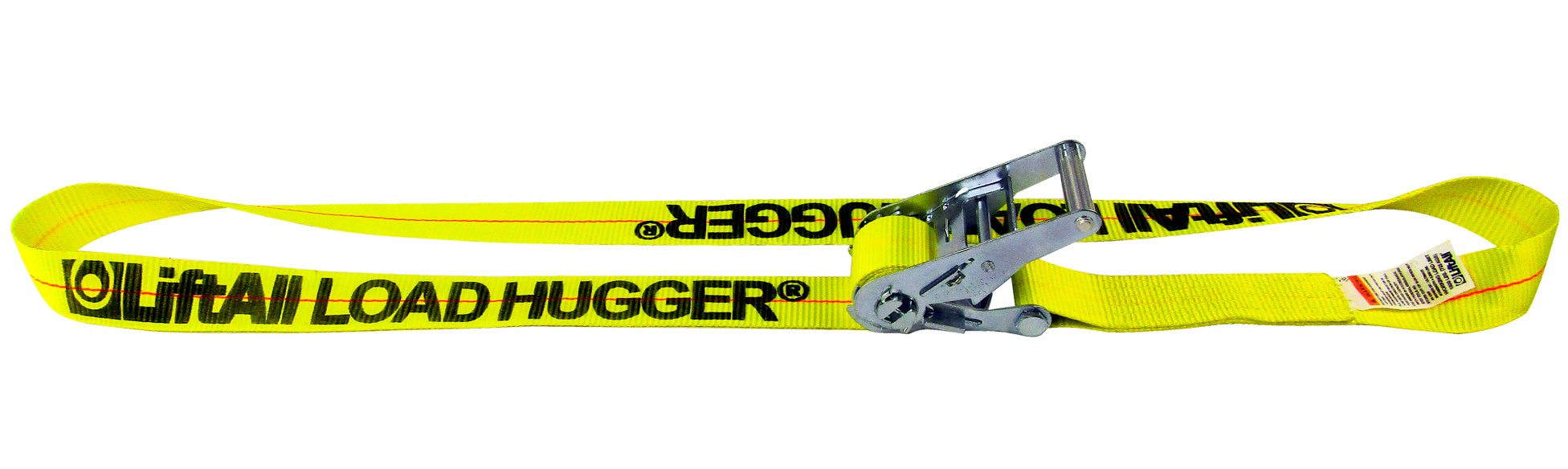

Type A – Endless Series 5,000 Series 10,000 Web Width 2″ 2″ Ultimate Break Strength* 5,000 lbs. 10,000 lbs. Working Load Limit 1,600 lbs. 3,300 lbs. End Fitting Length** (ft.) Stand. Part No. Tuff-Edge Part No. Stand. Part No. Tuff-Edge Part No. Flat Hook 27 60501 TE60501 61001 TE61001 30 60502 TE60502 61002 TE61002 Stamped Triangle 27 60503 TE60503 61003 TE61003 30 60504 TE60504 61004 TE61004 Stamped Snap Hook 27 60505 TE60505 61005 TE61005 30 60506 TE60506 61006 TE61006 Twisted Snap Hook 27 60507 TE60507 61007 TE61007 30 60508 TE60508 61008 TE61008 Forged Snap Hook 27 60509 TE60509 61009 TE61009 30 60510 TE60510 61010 TE61010 D-Ring 27 60511 TE60511 – – 30 60512 TE60512 – – U-Hook 27 60513 TE60513 26422 TE26422 30 60514 TE60514 26423 TE26423 Hook & Keeper 27 60515 TE60515 – – 30 60516 TE60516 – – Chain Anchor Assembly 27 – – 61013 TE61013 30 – – 61014 TE61014 Type A- Endless 27 60517 TE60517 61011 TE61011 30 60518 TE60518 61012 TE61012 Note: Since end terminations vary proportionally with size, check with Lift-All if precise dimensions are required.
* Ultimate breaking strength of assembly when new.
** Non-standard lengths available.Load Hugger Series 15,000 – 3″ & 4″ Wide Tiedowns

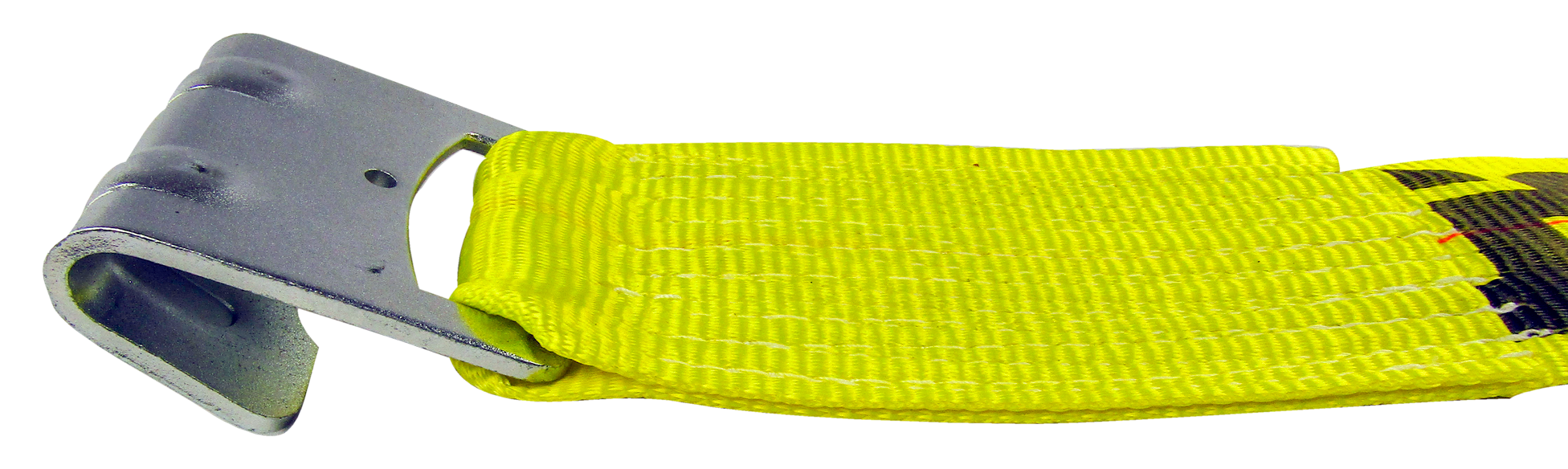

Flat Hook

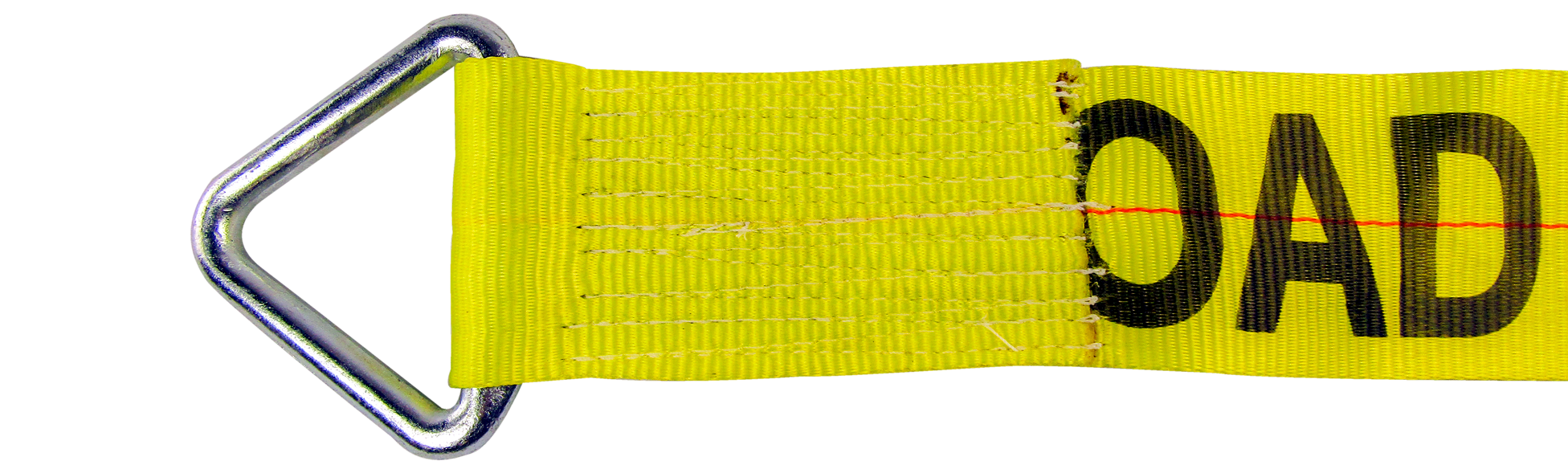

Forged Triangle

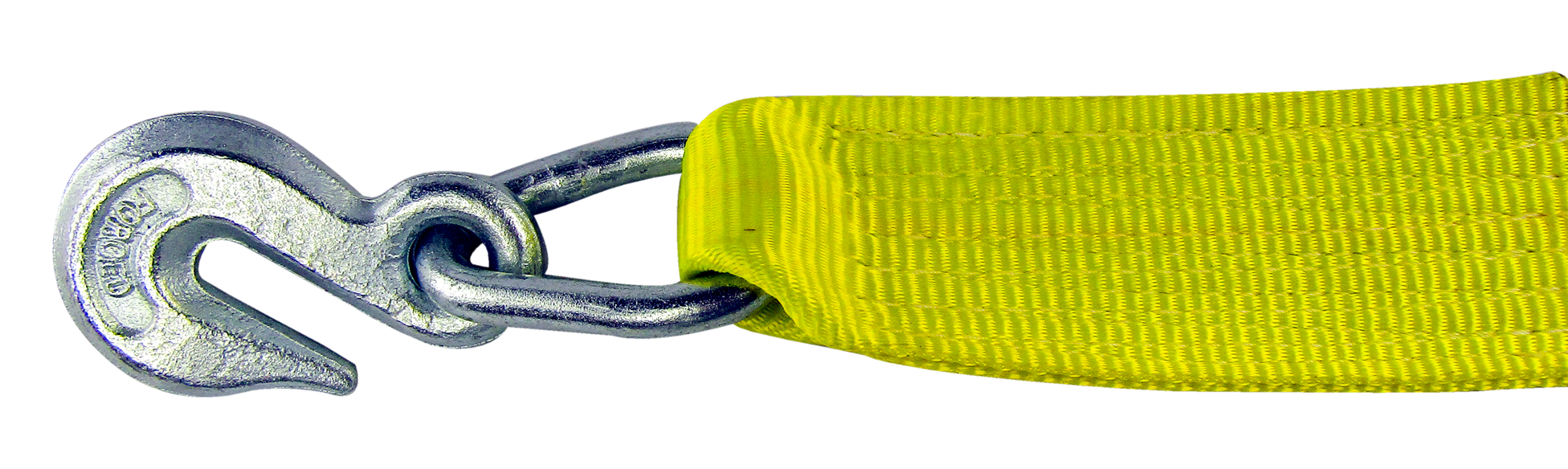

Chain Grab Hook

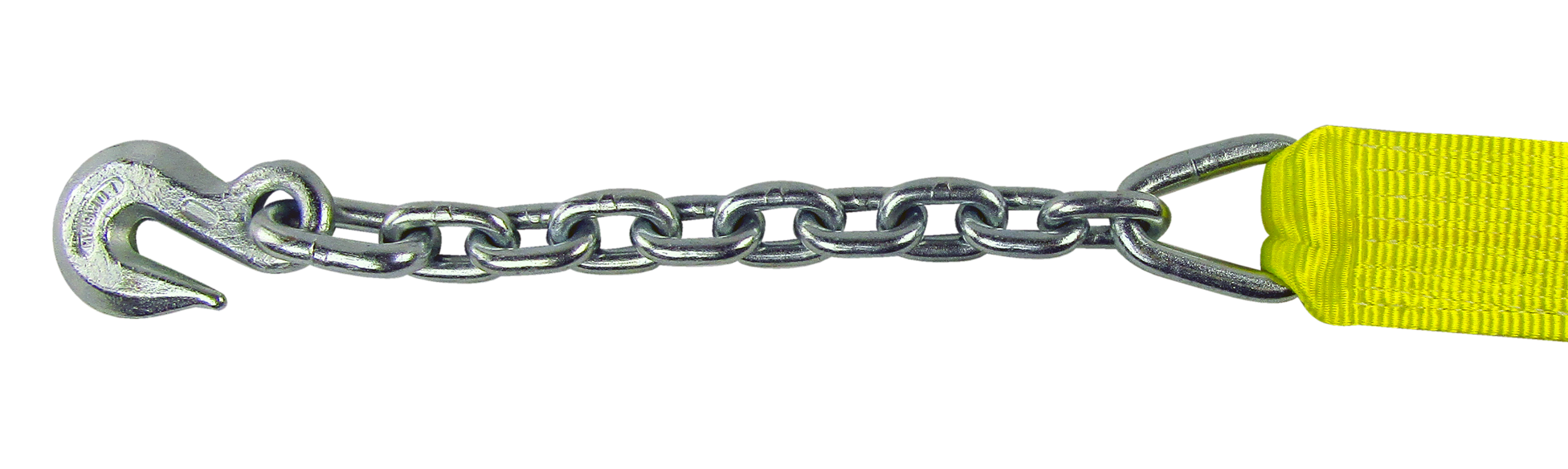

Chain Anchor Assembly

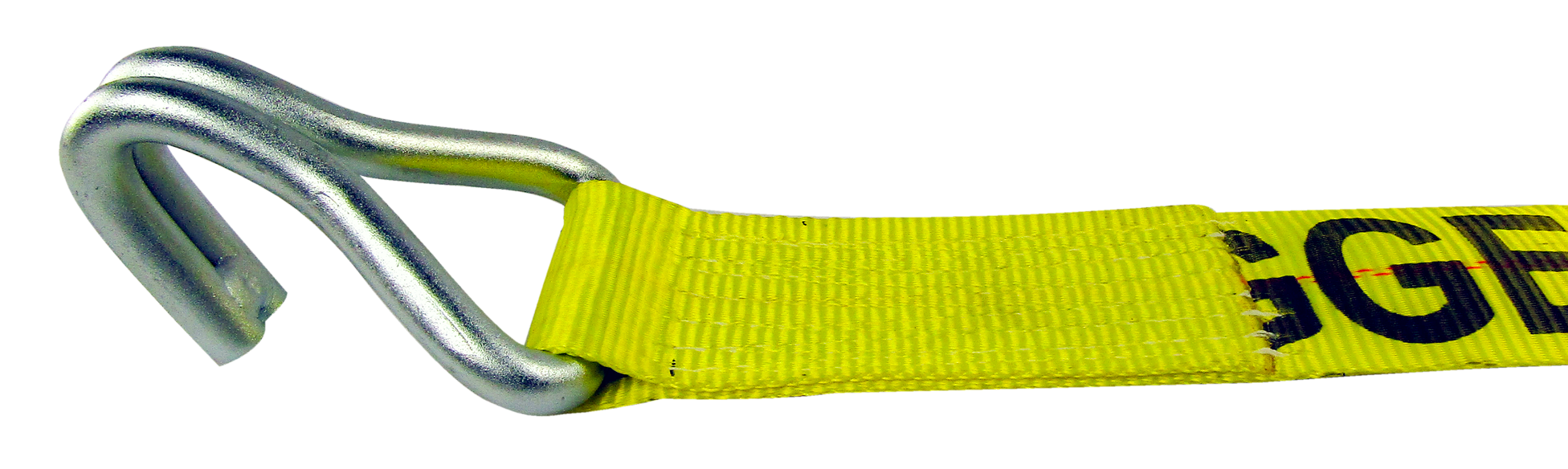

U-Hook

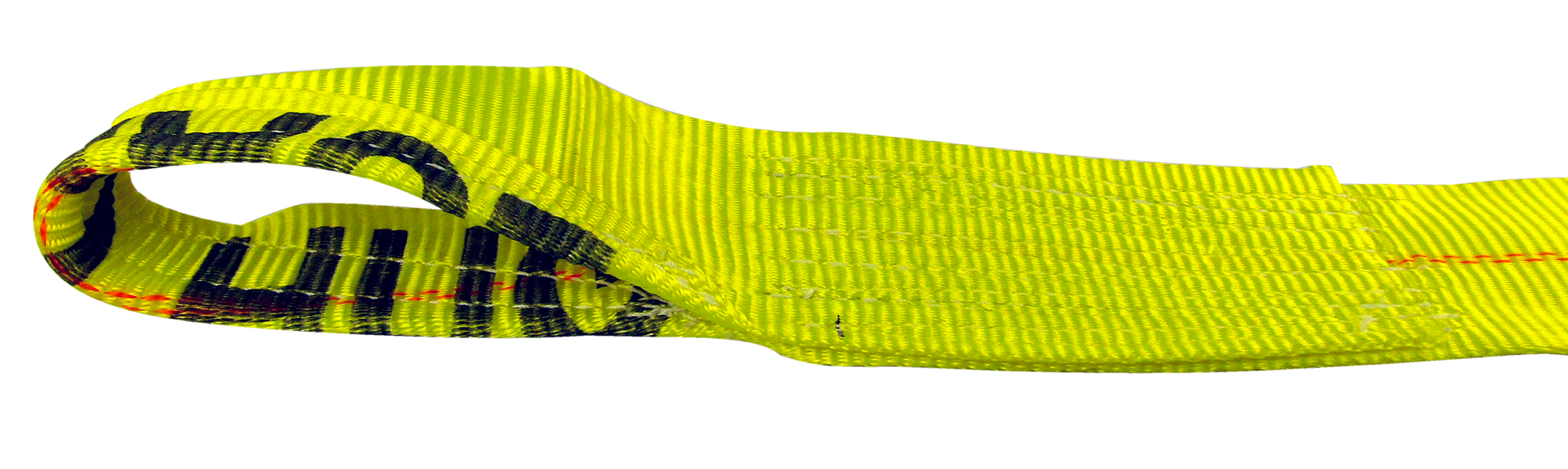

7-in. Assembly

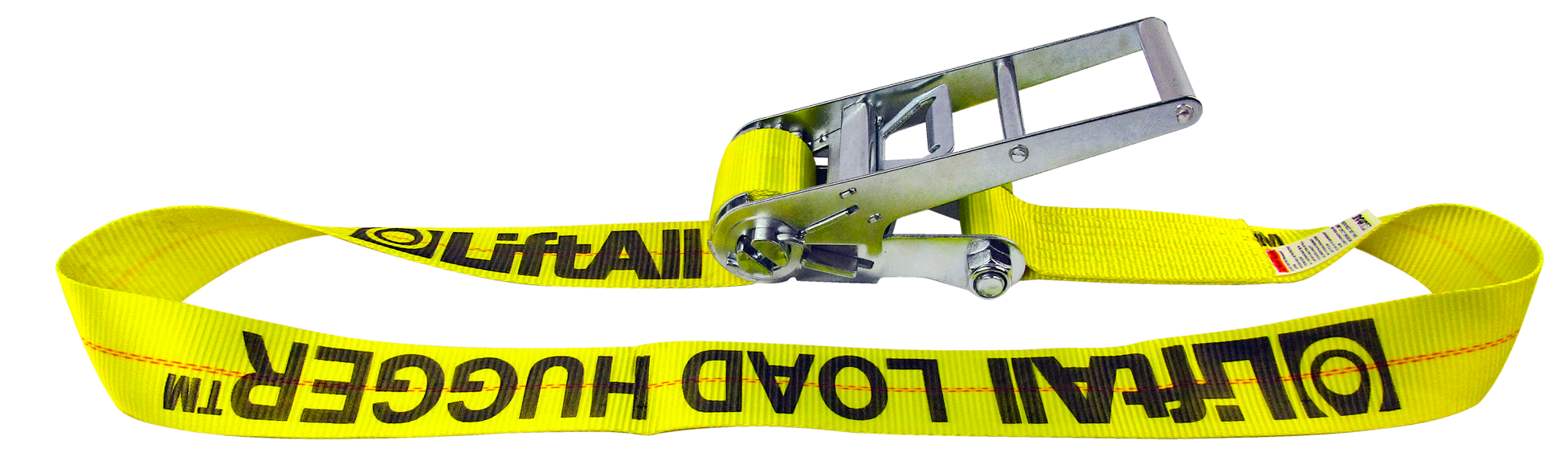

Type A – Endless Web Width 3″ 4″ Ultimate Break Strength* 15,000 lbs. Working Load Limit 5,000 lbs. End Fitting Length** (ft.) Stand. Part No. Tuff-Edge Part No. Stand. Part No. Tuff-Edge Part No. Flat Hook 27 20482 TE20482 26424 TE26424 30 20483 TE20483 26425 TE26425 Forged Triangle 27 20484 TE20484 26430 TE26430 30 20485 TE20485 26431 TE26431 Chain Grab Hook 27 20486 TE20486 26426 TE26426 30 20487 TE20487 26427 TE26427 Chain Anchor Assembly 27 20488 TE20488 264232 TE26432 30 20489 TE20489 26433 TE26433 U-Hook 27 20494 TE20494 26436 TE26436 30 20495 TE20495 26437 TE26437 7-in. Sewn Eye 27 20490 TE20490 26428 TE26428 30 20491 TE20491 26429 TE26429 Type A- Endless 27 20492 TE20492 26434 TE26434 30 20493 TE20493 26435 TE26435 * Ultimate breaking strength of assembly when new.
** Non-standard lengths available.
Winch Straps
3″ & 4″ Wide Polyester Winch Straps
- Load Hugger Winch Straps are designed for winches on flatbed trucks and trailers.
- Sling protection and corner protectors extend life of Load Huggers.
- Ultimate breaking strength 15,000 lbs.
- Working load limit 5,000 lbs.
- Standard assemblies in 27′ or 30′ lengths.
- To order a non-standard strap, specify width, length, and end fitting.
Download our Winch Straps Catalog
Winch LinesLift-All winch and hoist lines are made using 6X19 IWRC wire core ropes for better resistance to abrasion and crushing. Available with carbon hooks for large throat openings, or alloy hooks for longer life.
- Flemish Eye splice for high strength-efficiency.
- Meets OSHA 1910.184 and ASME B30.9.
- Heavy-duty thimble in eye extends useful life.
- Economical custom assemblies.
- No assembly time – ready to install.
- Stainless steel latch keeps hook in proper place.
Capacities of 6X19 IWRC Steel Core
6X19 IWRC STEEL CORE Rope Diameter (in.) WLL (tons) Length (ft.) Domestic Import Eye Hook & Latch Swivel Eye Hook & Latch Eye Hook & Latch Swivel Eye Hook & Latch 3/8” 2.4 35 38WX35 38WSX35 38WIX35 38WISX35 50 38WX50 38WSX50 38WIX50 38WISX50 75 38WX75 38WSX75 38WIX75 38WISX75 100 38WX100 38WSX100 38WIX100 38WISX100 150 38WX150 38WSX150 38WIX150 38WISX150 7/16” 3.2 50 716WX50 716WSX50 716WIX50 716WISX50 75 716WX75 716WSX75 716WIX75 716WISX75 100 716WX100 716WSX100 716WIX100 716WISX100 150 716WX150 716WSX150 716WIX150 716WISX150 1/2” 4.2 75 716WX50 716WSX50 716WIX50 716WISX50 100 12WX100 12WSX100 12WIX100 12WISX100 150 12WX150 12WSX150 12WIX150 12WISX150
